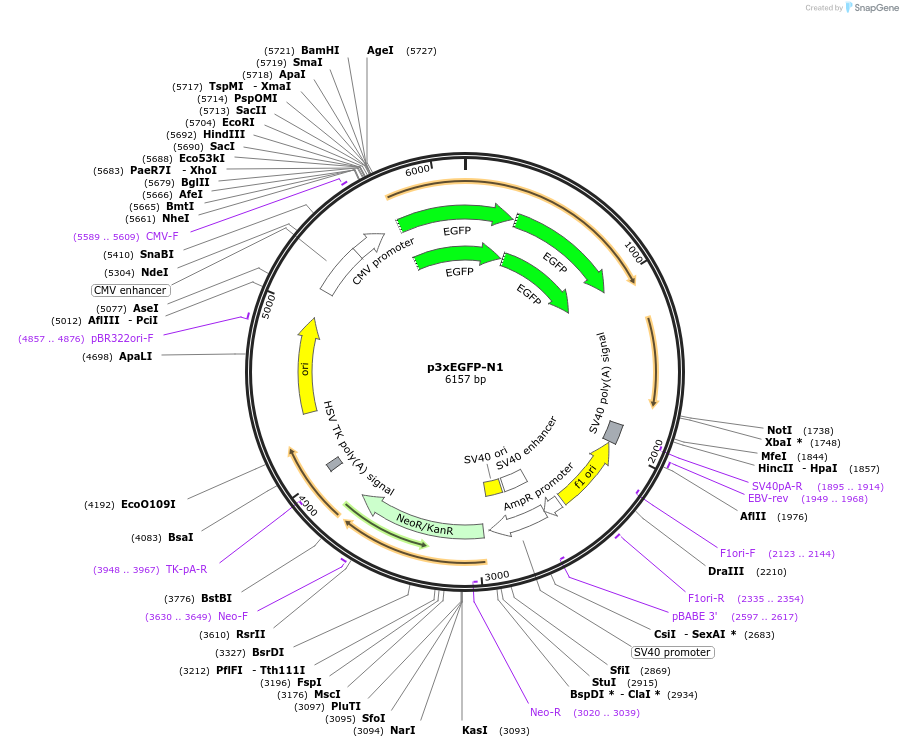

p3xEGFP-N1
(Plasmid #122163)

• Purpose: Expression of 3xEGFP
• Depositing Lab: Georg Mayr
• Publication: Bohm et al Anal Biochem. 2017 Sep 15;533:48-55. doi: 10.1016/j.ab.2017.06.015. Epub 2017 Jun 30.

Backbone

• Vector backbone: pEGFP-N1
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: 3xEGFP
• Promoter: CMV

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BspEI (destroyed during cloning)
• 3′ cloning site: NotI (not destroyed)
• 5′ sequencing primer: AGCTGGTTTAGTGAACCGTCA

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Please note: The MCS of multimeric EGFP vectors differs from the MCS of the monomeric EGFP vector (pEGFP-N1):

G CTA GCG CTA CCG GAC TCA GAT CTC GAG CTC AAG CTT GAA ATC GAA TTC CCG CGG GCC CGG GAT CCA CCG GTC GCC ACC ATG GTG
