pCF221
(Plasmid
#121669)
-
PurposeU6-sgRNA EF1a-mCherry
-
Depositing Lab
-

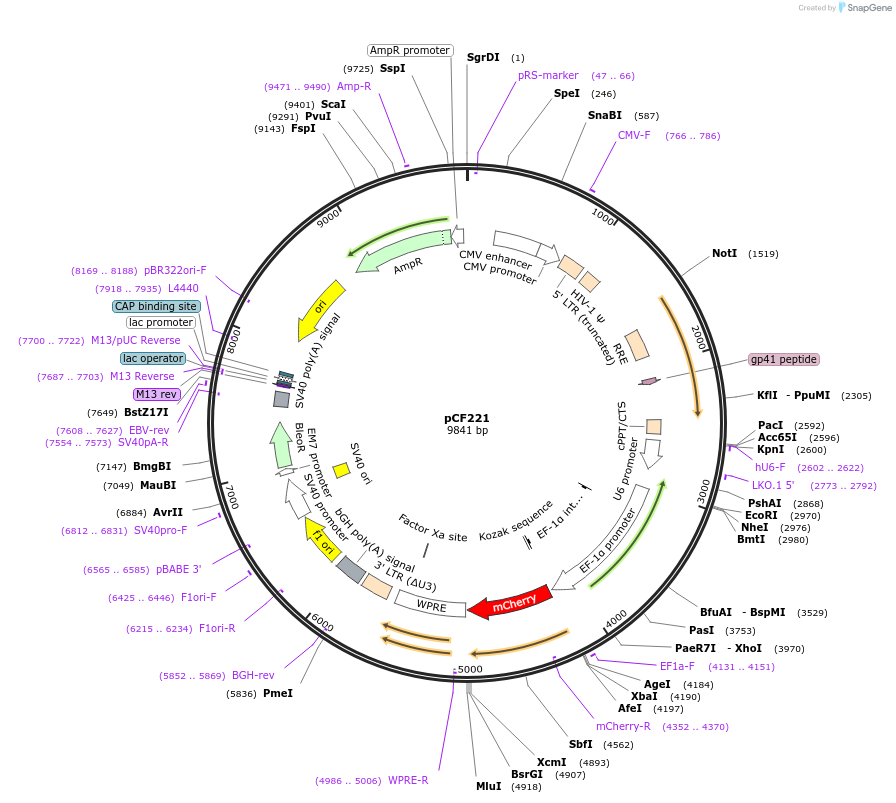

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 121669 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepU6
- Backbone size w/o insert (bp) 8770
- Total vector size (bp) 9481
-
Vector typeLentiviral
-
Selectable markersbleoR gene: antibiotic binding protein
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Growth instructionsanother resistance
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemCherry
-
SpeciesDiscosoma
-
Insert Size (bp)711
- Promoter U6
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer 5'-ggttctagagcgctgccaccAT-3'
- 3′ sequencing primer 5'-cttaacgcgtTTACTTGTACAGCTC-3' (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCF221 was a gift from David Savage (Addgene plasmid # 121669 ; http://n2t.net/addgene:121669 ; RRID:Addgene_121669) -
For your References section:
CRISPR-Cas9 Circular Permutants as Programmable Scaffolds for Genome Modification. Oakes BL, Fellmann C, Rishi H, Taylor KL, Ren SM, Nadler DC, Yokoo R, Arkin AP, Doudna JA, Savage DF. Cell. 2019 Jan 10;176(1-2):254-267.e16. doi: 10.1016/j.cell.2018.11.052. 10.1016/j.cell.2018.11.052 PubMed 30633905
