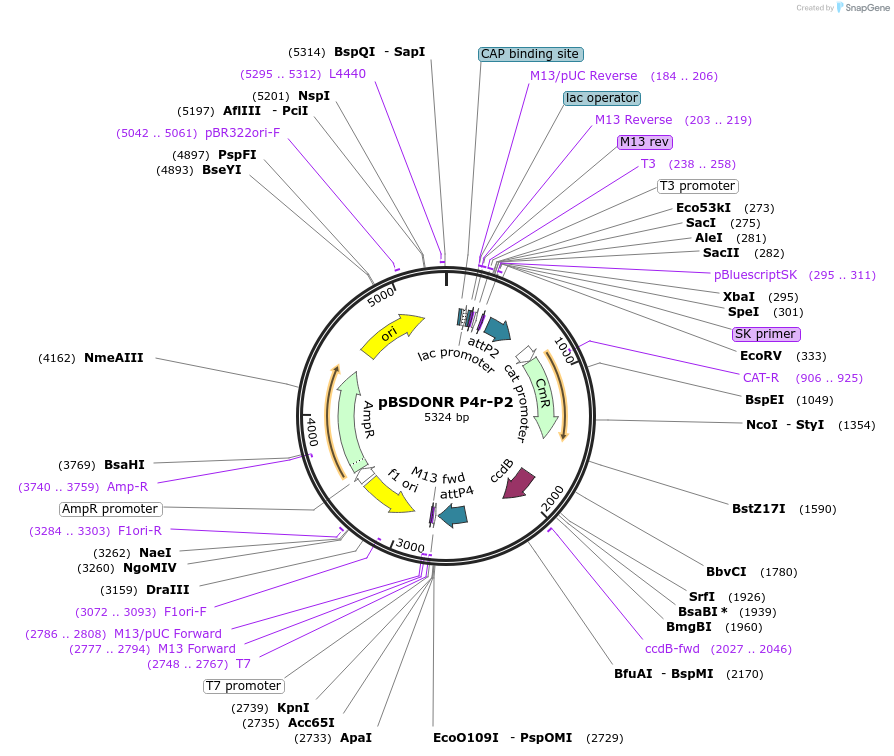

pBSDONR P4r-P2
(Plasmid #121527)

• Purpose: (Empty Backbone) Gateway Entry Vector for Multisite Gateway Cloning
• Depositing Lab: Roger Innes
• Publication: Gu et al Plant Physiol. 2011 Apr;155(4):1827-38. doi: 10.1104/pp.110.171785. Epub 2011 Feb 22.

Backbone

• Vector backbone: pBlueScript
• Backbone manufacturer: Stratagene
• Backbone size (bp): 2900
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Chloramphenicol and Ampicillin, 25 & 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): ccdB Survival
• Copy number: High Copy

Cloning Information

• Cloning method: Gateway Cloning

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Contains Gateway Entry Cassette with ccdB gene and chloramphenicol resistance. To make this vector, sequences from the GateWay cassettes of pDONR221 P4r-P3r and pDONR221 P3-P2 were subcloned into pBlueScript. The purpose of this was to create a DONR vector with ampicillin resistance rather than kanamycin resistance, which facilitates use of kanamycin resistant destination vectors. The combination of P4r-P2 att sites enables multisite Gateway cloning in which the N-terminal sequence is cloned into a P1-P4 donor vector and the C-terminal sequence is cloned into this vector, with the destination vector containing P1-P2 att sites.
