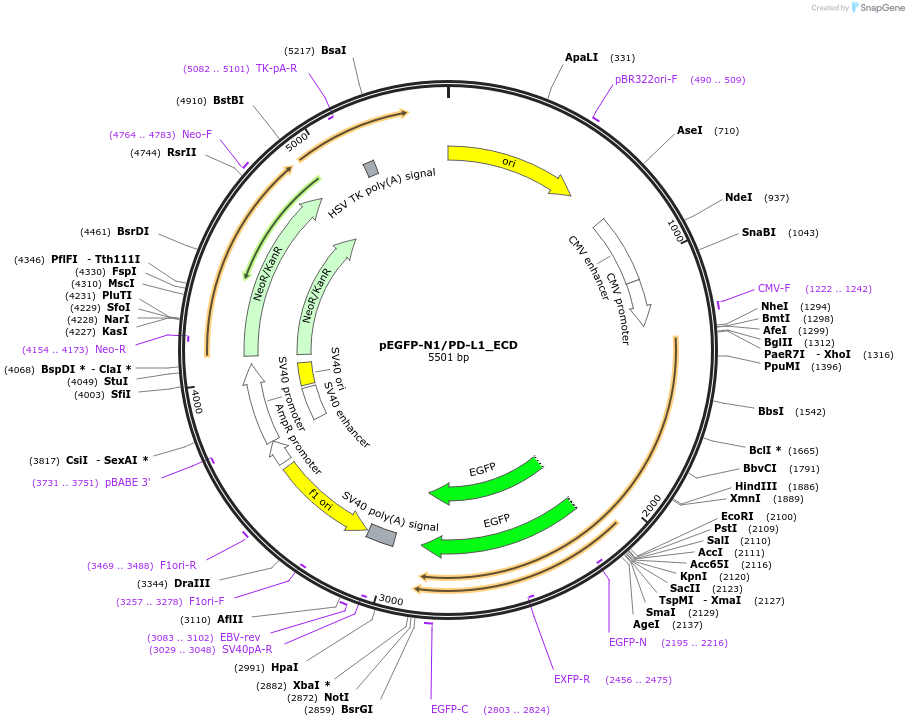

pEGFP-N1/PD-L1_ECD
(Plasmid #121479)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 121479 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 5600
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    CD274
  • Alt name
    PD-L1 ECD
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    900
  • Mutation
    ECD+TM
  • GenBank ID
    29126 29126
  • Entrez Gene
    CD274 (a.k.a. B7-H, B7H1, PD-L1, PDCD1L1, PDCD1LG1, PDL1, hPD-L1)
  • Promoter CMV
  • Tag / Fusion Protein
    • EGFP (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer pCMVF
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEGFP-N1/PD-L1_ECD was a gift from Mien-Chie Hung (Addgene plasmid # 121479 ; http://n2t.net/addgene:121479 ; RRID:Addgene_121479)

  • For your References section:

    Glycosylation and stabilization of programmed death ligand-1 suppresses T-cell activity. Li CW, Lim SO, Xia W, Lee HH, Chan LC, Kuo CW, Khoo KH, Chang SS, Cha JH, Kim T, Hsu JL, Wu Y, Hsu JM, Yamaguchi H, Ding Q, Wang Y, Yao J, Lee CC, Wu HJ, Sahin AA, Allison JP, Yu D, Hortobagyi GN, Hung MC. Nat Commun. 2016 Aug 30;7:12632. doi: 10.1038/ncomms12632. 10.1038/ncomms12632 PubMed 27572267
