pBLO5.01
(Plasmid
#121418)
-
PurposepUC19_BsaI-dCas9-BsaI
-
Depositing Lab
-

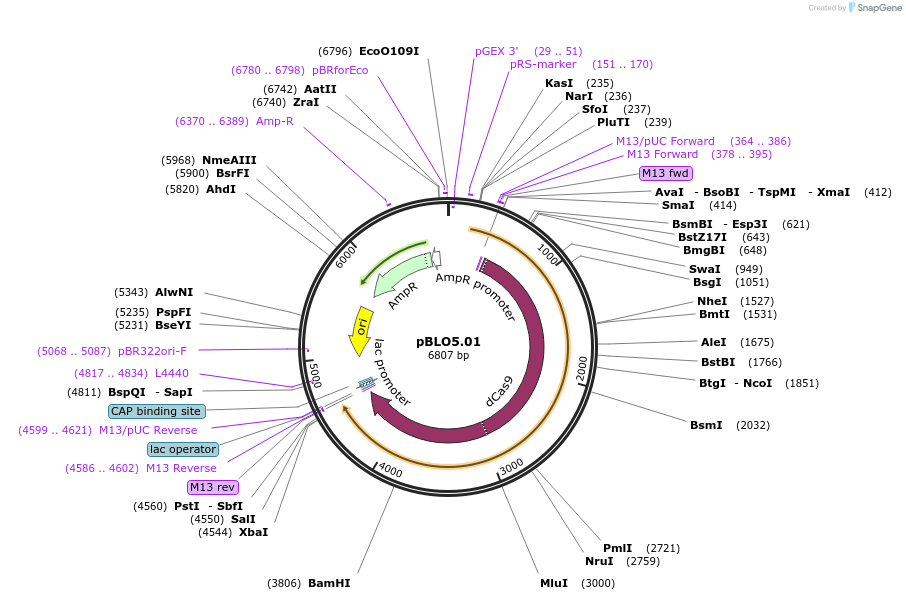

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 121418 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepUC19
- Backbone size w/o insert (bp) 2703
- Total vector size (bp) 6807
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namedcas9
-
SpeciesS. pyogenes
-
Insert Size (bp)4014
- Promoter lac
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer GTAAAACGACGGCCAGT
- 3′ sequencing primer GTCATAGCTGTTTCCTG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBLO5.01 was a gift from David Savage (Addgene plasmid # 121418 ; http://n2t.net/addgene:121418 ; RRID:Addgene_121418) -
For your References section:
Profiling of engineering hotspots identifies an allosteric CRISPR-Cas9 switch. Oakes BL, Nadler DC, Flamholz A, Fellmann C, Staahl BT, Doudna JA, Savage DF. Nat Biotechnol. 2016 May 2. doi: 10.1038/nbt.3528. 10.1038/nbt.3528 PubMed 27136077
