Addgene

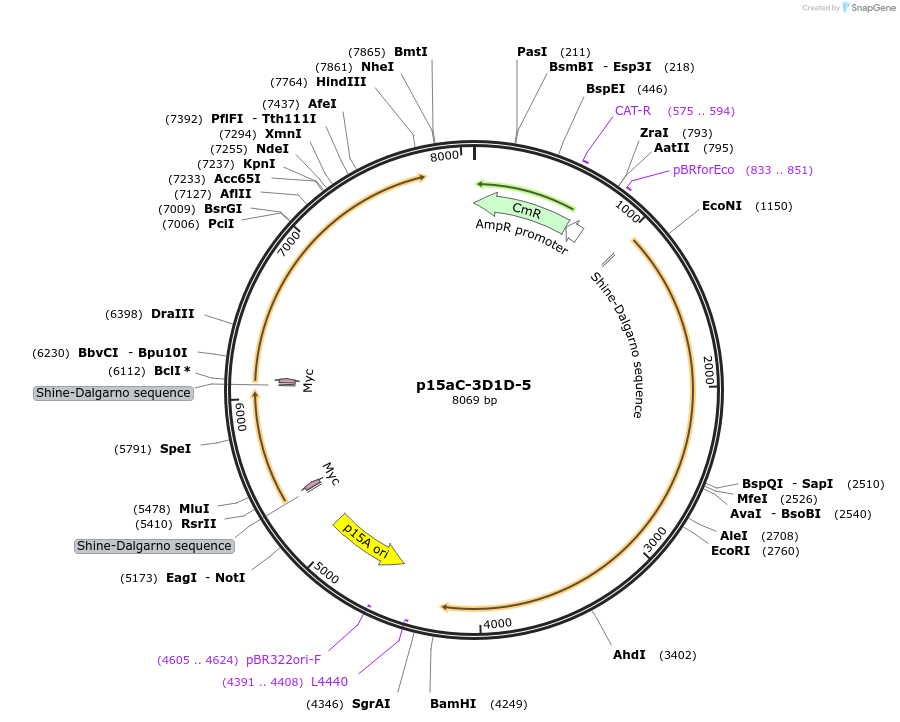

p15aC-3D1D-5
(Plasmid #121050)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 121050 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    p15aC
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert 1

  • Gene/Insert name
    PIS
  • Alt name
    phosphatidyl inositol synthase
  • Alt name
    phosphatidylinositol synthase
  • Alt name
    PI synthase
  • Species
    Trypanosome brucei
  • Tag / Fusion Protein
    • myc (N terminal on insert)

Gene/Insert 2

  • Gene/Insert name
    phosphatidylinositol 4-phosphate 5-kinase
  • Alt name
    phosphatidylinositol 4-phosphate 5-kinase type-1 α isoform 2
  • Alt name
    PI4P5Kα
  • Alt name
    PI4P5K
  • Species
    H. sapiens (human)
  • Tag / Fusion Protein
    • myc (N terminal on insert)

Gene/Insert 3

  • Gene/Insert name
    phosphatidylinositol 3-kinase catalytic subunit p110α of class IA E545K
  • Alt name
    PI3K-E545K
  • Alt name
    phosphatidyl inositol 4-kinase β
  • Alt name
    PI4Kβ
  • Species
    Homo sapiens
  • Tag / Fusion Protein
    • none

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p15aC-3D1D-5 was a gift from Sanford Simon (Addgene plasmid # 121050 ; http://n2t.net/addgene:121050 ; RRID:Addgene_121050)
  • For your References section:

    Escherichia coli as a platform for the study of phosphoinositide biology. Botero S, Chiaroni-Clarke R, Simon SM. Sci Adv. 2019 Mar 27;5(3):eaat4872. doi: 10.1126/sciadv.aat4872. eCollection 2019 Mar. 10.1126/sciadv.aat4872 PubMed 30944849
