UCT1m
(Plasmid
#121041)
-
PurposeMoClo golden gate assembly DE part for gQi gRNA (guide RNA for S. pyogenes Cas9; sequence from DOI: 10.1016/j.cell.2013.02.022). Please see Supplemental Documents for annotated Genbank file.
-
Depositing Lab
-
Publication
-

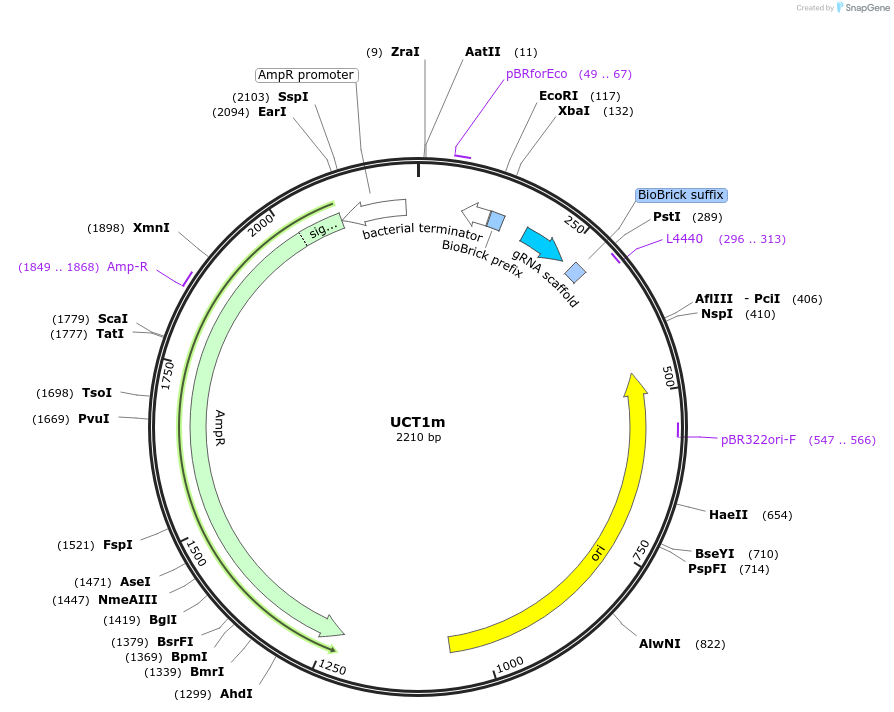

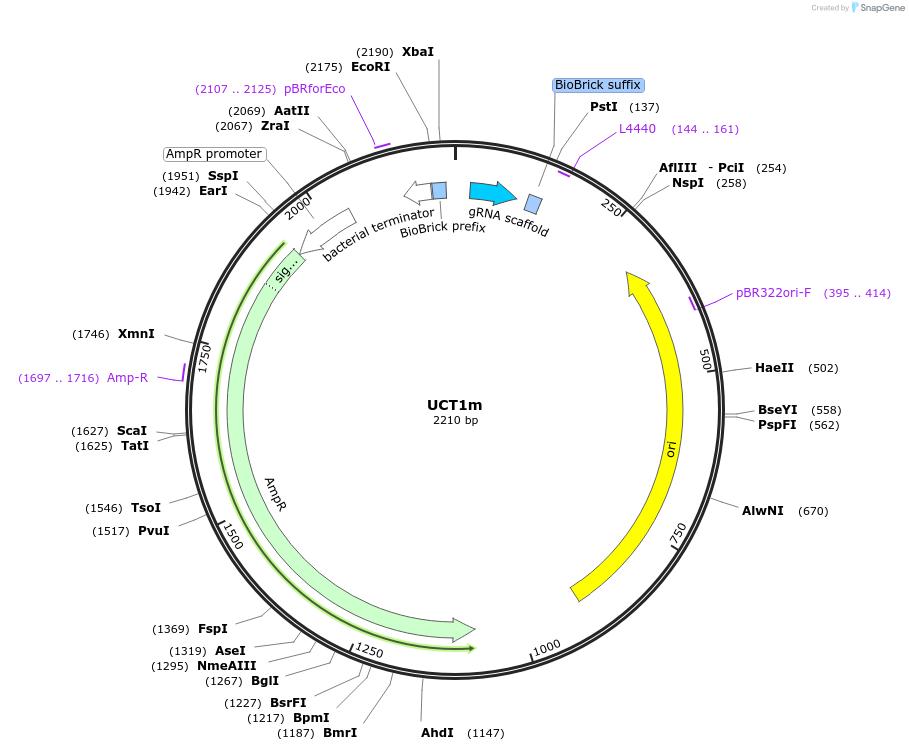

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 121041 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneDVA
- Backbone size w/o insert (bp) 2100
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)JM109
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameUCT-part guide RNA (Stanley Qi sequence)
-
SpeciesSynthetic
-
Insert Size (bp)110
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer AAATAGGCGTATCACGAGGCA
- 3′ sequencing primer TTACCGCCTTTGAGTGAGCTG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
UCT1m was a gift from Richard Murray (Addgene plasmid # 121041 ; http://n2t.net/addgene:121041 ; RRID:Addgene_121041)
