P61m
(Plasmid
#120953)
-
PurposeMoClo golden gate assembly AB part for pTac (Adam Meyer's improved pTac promoter selected for dynamic range and low cross-sensitivity; unpublished, using strategy from https://doi.org/10.1101/285866).
-
Depositing Lab
-
Publication
-

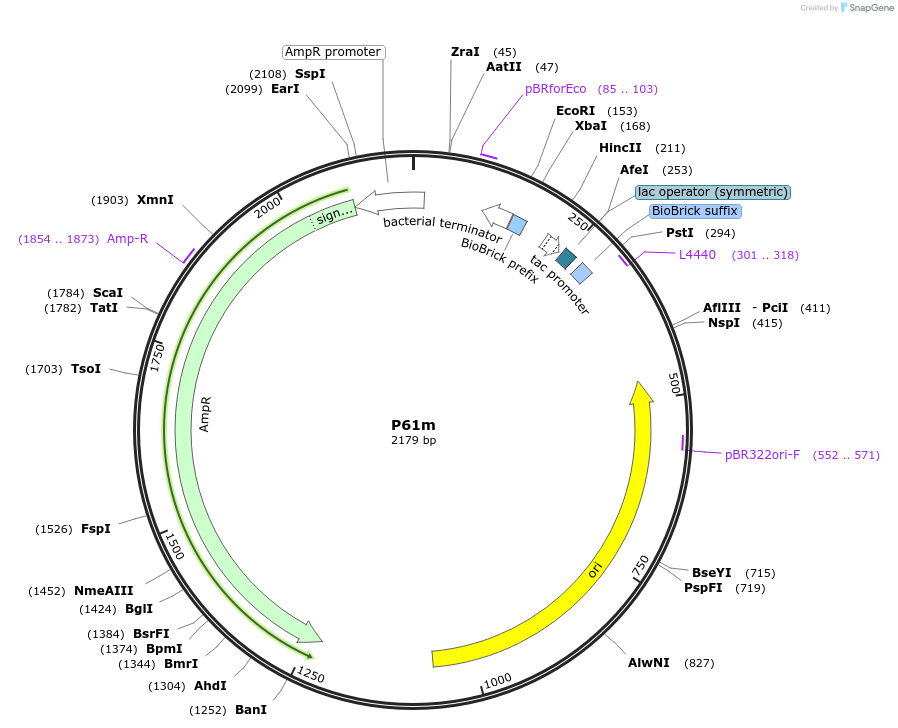

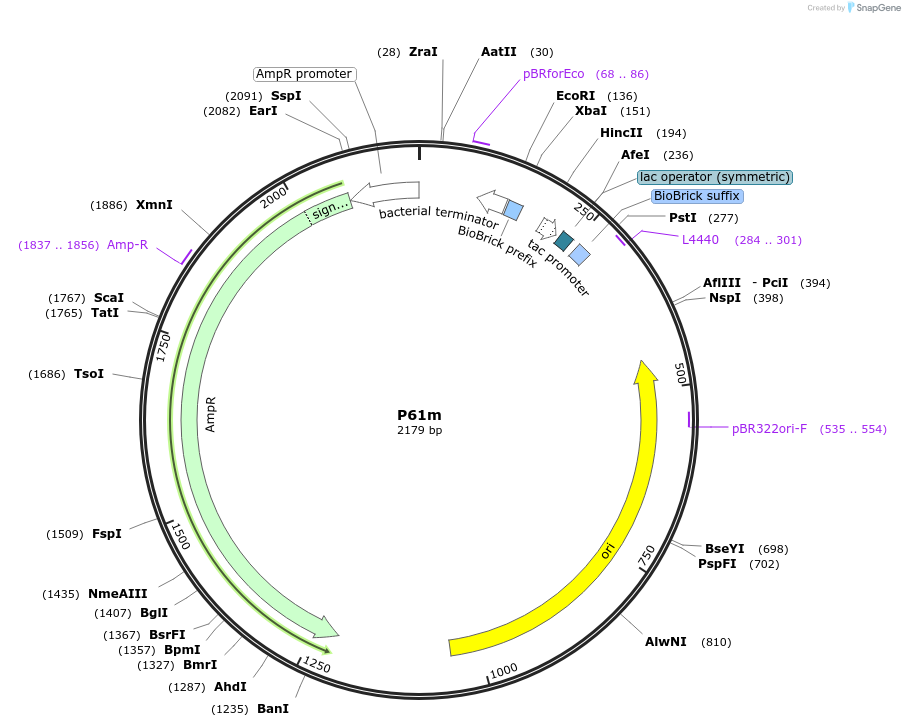

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 120953 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneDVA
- Backbone size w/o insert (bp) 2100
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)JM109
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameTac promoter Adam Meyer
-
SpeciesSynthetic
-
Insert Size (bp)79
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer AAATAGGCGTATCACGAGGCA
- 3′ sequencing primer TTACCGCCTTTGAGTGAGCTG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please see Supplemental Documents for annotated Genbank file.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
P61m was a gift from Richard Murray (Addgene plasmid # 120953 ; http://n2t.net/addgene:120953 ; RRID:Addgene_120953)
Included in kit:
Related items:
