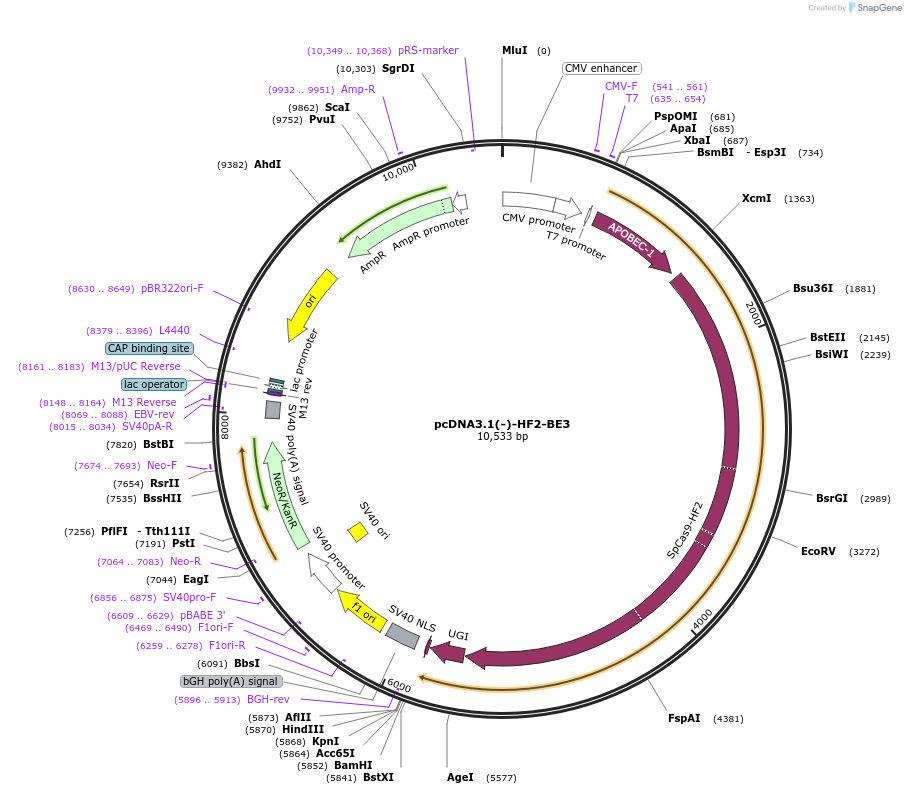

pcDNA3.1(-)-HF2-BE3
(Plasmid #120397)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 120397 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1(-)
  • Backbone size w/o insert (bp) 5397
  • Total vector size (bp) 10530
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    HF2-BE3
  • Alt name
    rAPOBEC1-XTEN-HF2-nCas9-GGS-UGI-GGS-NLS
  • Species
    Synthetic
  • Insert Size (bp)
    5133
  • Mutation
    Mammalian codon-optimized Cas9-HF
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer CCTTGCTGTCCTGCCCCACCCCACC
  • 3′ sequencing primer CCTTGCTGTCCTGCCCCACCCCACC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.1(-)-HF2-BE3 was a gift from Junjiu Huang (Addgene plasmid # 120397 ; http://n2t.net/addgene:120397 ; RRID:Addgene_120397)

  • For your References section:

    Effective gene editing by high-fidelity base editor 2 in mouse zygotes. Liang P, Sun H, Sun Y, Zhang X, Xie X, Zhang J, Zhang Z, Chen Y, Ding C, Xiong Y, Ma W, Liu D, Huang J, Songyang Z. Protein Cell. 2017 Aug;8(8):601-611. doi: 10.1007/s13238-017-0418-2. Epub 2017 Jun 5. 10.1007/s13238-017-0418-2 PubMed 28585179
