pBS_nanorod_105b
(Plasmid
#120347)
-
Purposephagemid containing all components for assembly of a DNA origami nanorod (10-helix bundle)
-
Depositing Lab
-

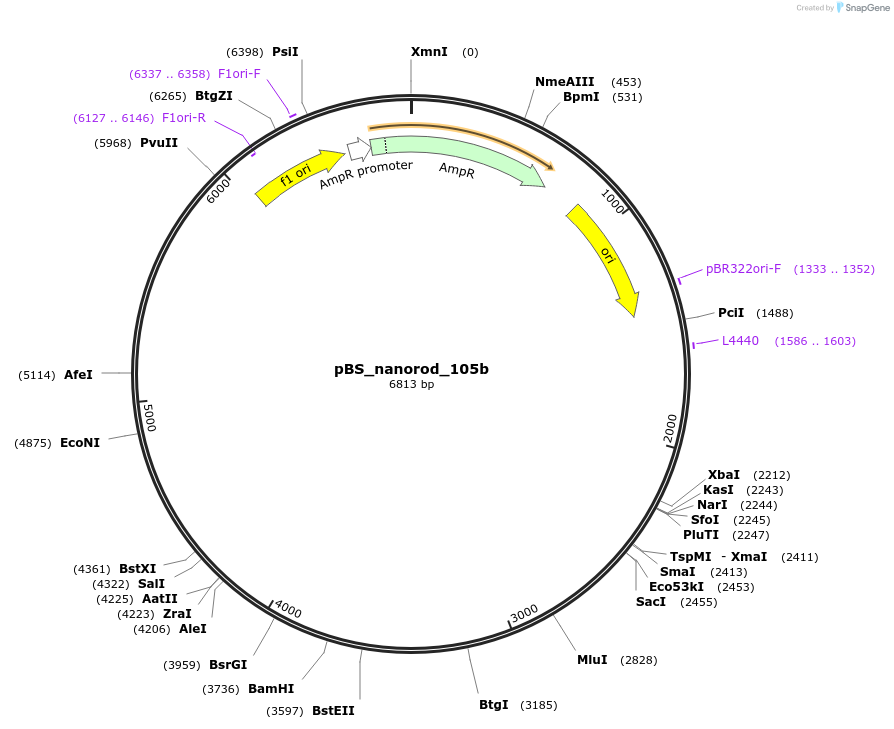

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 120347 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepBS SK II (+)
-
Backbone manufacturereurofins
- Backbone size w/o insert (bp) 2500
- Total vector size (bp) 6813
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameStaple sequences for a DNA origami nanorod
-
SpeciesSynthetic
-
Insert Size (bp)4316
- Promoter none
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsaI (destroyed during cloning)
- 3′ cloning site BsaI (destroyed during cloning)
- 5′ sequencing primer unknown
- 3′ sequencing primer unknown (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBS_nanorod_105b was a gift from Hendrik Dietz (Addgene plasmid # 120347 ; http://n2t.net/addgene:120347 ; RRID:Addgene_120347) -
For your References section:
Biotechnological mass production of DNA origami. Praetorius F, Kick B, Behler KL, Honemann MN, Weuster-Botz D, Dietz H. Nature. 2017 Dec 6;552(7683):84-87. doi: 10.1038/nature24650. 10.1038/nature24650 PubMed 29219963
