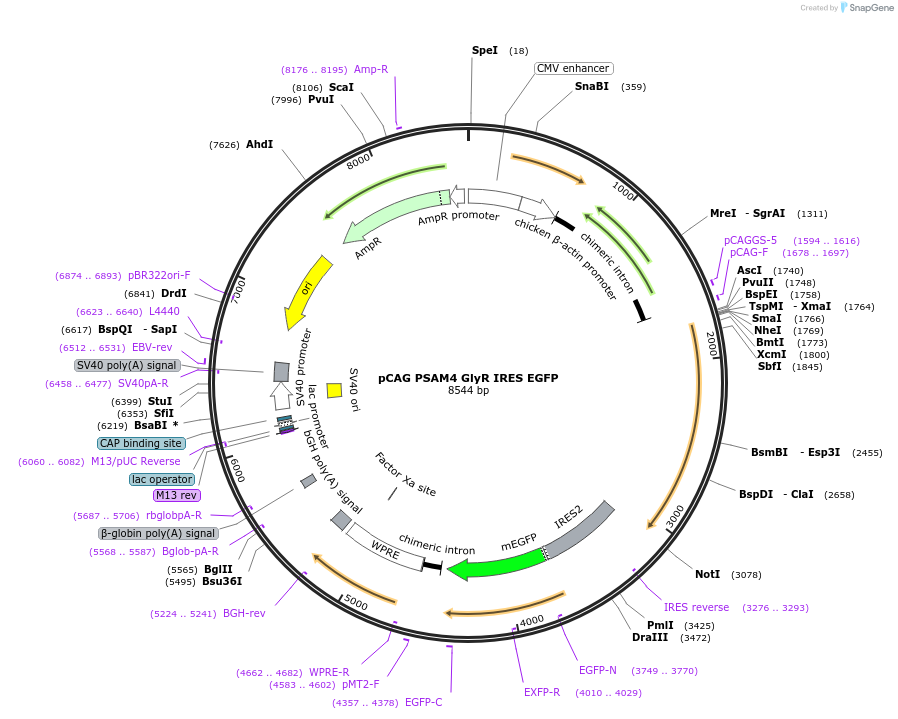

pCAG PSAM4 GlyR IRES EGFP
(Plasmid #119739)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 119739 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCAG
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PSAM4 GlyR IRES eGFP
  • Species
    H. sapiens (human), Synthetic
  • Mutation
    L131G, Q139L, Y217F
  • Entrez Gene
    CHRNA7 (a.k.a. CHRNA7-2, NACHRA7)
  • Promoter CAG

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer pCAG-F
  • 3′ sequencing primer IRES reverse
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCAG PSAM4 GlyR IRES EGFP was a gift from Scott Sternson (Addgene plasmid # 119739 ; http://n2t.net/addgene:119739 ; RRID:Addgene_119739)

  • For your References section:

    Ultrapotent chemogenetics for research and potential clinical applications. Magnus CJ, Lee PH, Bonaventura J, Zemla R, Gomez JL, Ramirez MH, Hu X, Galvan A, Basu J, Michaelides M, Sternson SM. Science. 2019 Mar 14. pii: science.aav5282. doi: 10.1126/science.aav5282. 10.1126/science.aav5282 PubMed 30872534
