pJKW1659
(Plasmid
#119180)
-
PurposeE.coli expression plasmid for Pm4CL1 and PmCHS
-
Depositing Lab
-

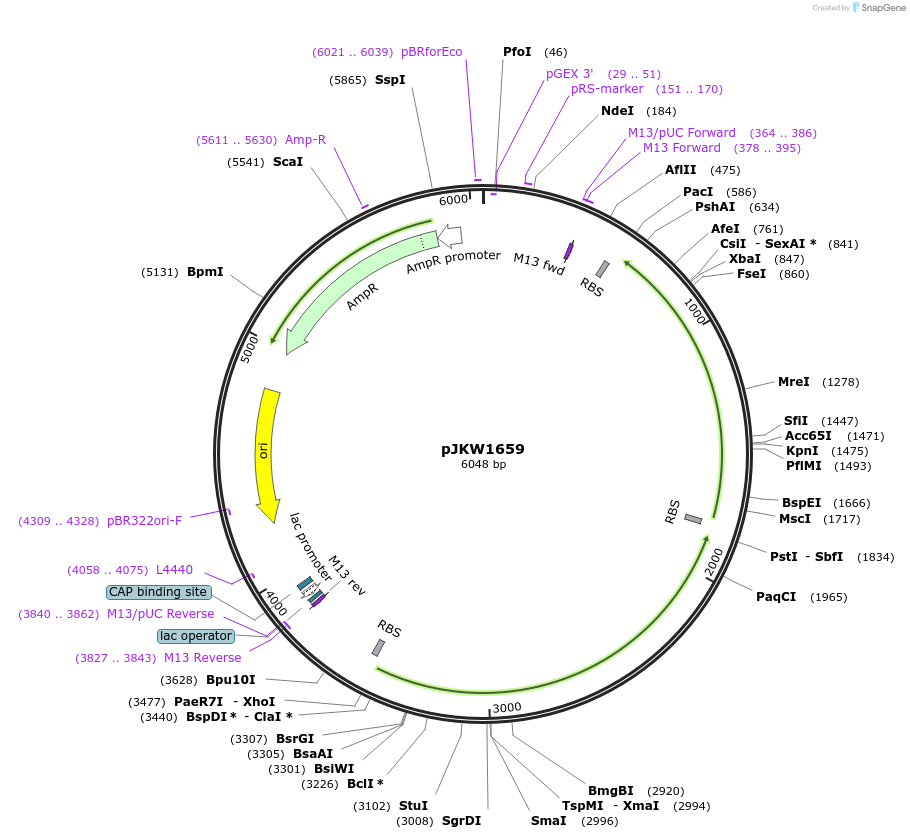

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 119180 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepJKW1565
- Backbone size w/o insert (bp) 3233
- Total vector size (bp) 6048
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert 1
-
Gene/Insert namePm4CL1
-
SpeciesPiper methysticum
-
Insert Size (bp)1638
-
GenBank IDMK058492
- Promoter pGAP
Cloning Information for Gene/Insert 1
- Cloning method Gibson Cloning
- 5′ sequencing primer CCGCTTGACGCTGCGTAAG (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert namePmCHS
-
SpeciesPiper methysticum
-
Insert Size (bp)1185
-
GenBank IDMK058495
- Promoter pGAP
Cloning Information for Gene/Insert 2
- Cloning method Gibson Cloning
- 5′ sequencing primer TTTTGAGGAAGGATTTGAG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJKW1659 was a gift from Jing-Ke Weng (Addgene plasmid # 119180 ; http://n2t.net/addgene:119180 ; RRID:Addgene_119180) -
For your References section:
The biosynthetic origin of psychoactive kavalactones in kava. Pluskal T, Torrens-Spence MP, Fallon TR, De Abreu A, Shi CH, Weng JK. Nat Plants. 2019 Jul 22. pii: 10.1038/s41477-019-0474-0. doi: 10.1038/s41477-019-0474-0. 10.1038/s41477-019-0474-0 PubMed 31332312
