PurposeFusion of hydrogen peroxide fluorescent biosensor HyPer and D-amino acid oxidase; excluded from nucleus. Allows H2O2 production/detection by adding D-amino acids. AAV expression vector; CMV promoter.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 119164 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

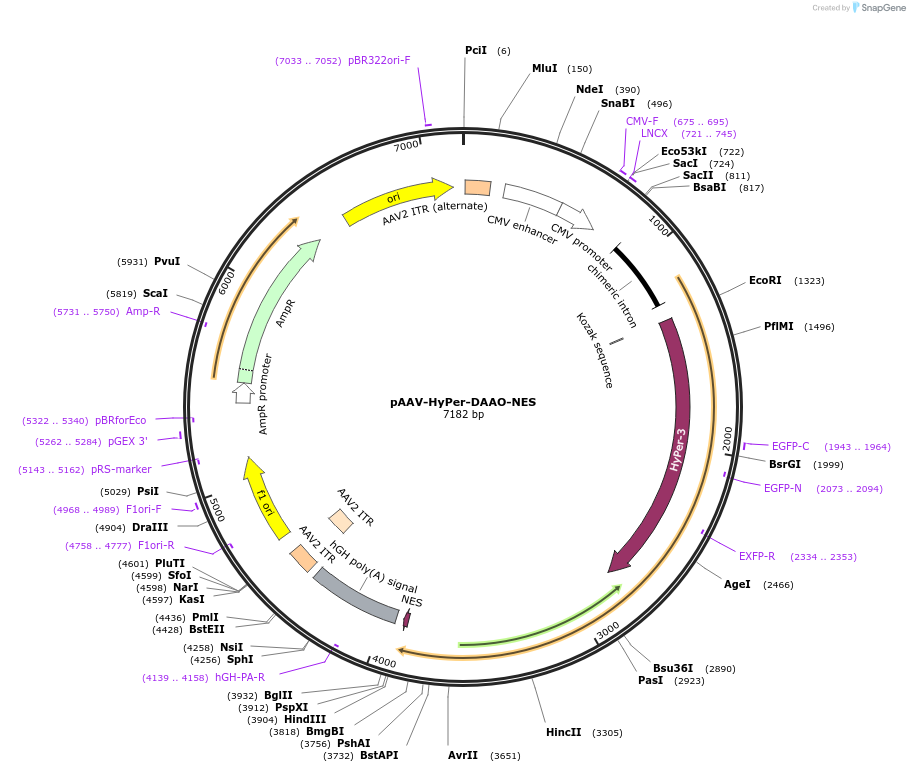

Backbone
-
Vector backbonepAAV-MCS
-
Backbone manufacturerStratagene
- Backbone size w/o insert (bp) 4600
- Total vector size (bp) 7200
-
Vector typeMammalian Expression, AAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameHyPer-DAAO-NES
-
Alt nameD-amino Acid Oxidase
-
SpeciesR. gracilis
-
Insert Size (bp)2571
- Promoter CMV
-
Tag
/ Fusion Protein
- NES (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer ACTTTGGCAAAGAATTGGGATTCGAAC
- 3′ sequencing primer GTCACAGGGATGCCACCCG (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byDAAO component of fusion protein received from Vsevolod Belousov, who's lab originally cloned DAAO.
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-HyPer-DAAO-NES was a gift from Thomas Michel (Addgene plasmid # 119164 ; http://n2t.net/addgene:119164 ; RRID:Addgene_119164) -
For your References section:
Chemogenetic generation of hydrogen peroxide in the heart induces severe cardiac dysfunction. Steinhorn B, Sorrentino A, Badole S, Bogdanova Y, Belousov V, Michel T. Nat Commun. 2018 Oct 2;9(1):4044. doi: 10.1038/s41467-018-06533-2. 10.1038/s41467-018-06533-2 PubMed 30279532
