pVC-Tol2-Pax3a_enh5-E1b:eGFP-Tol2
(Plasmid
#119061)
-
PurposeFluorescent vector with zebrafish pax3a enhancer 5; Tol2 version
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 119061 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

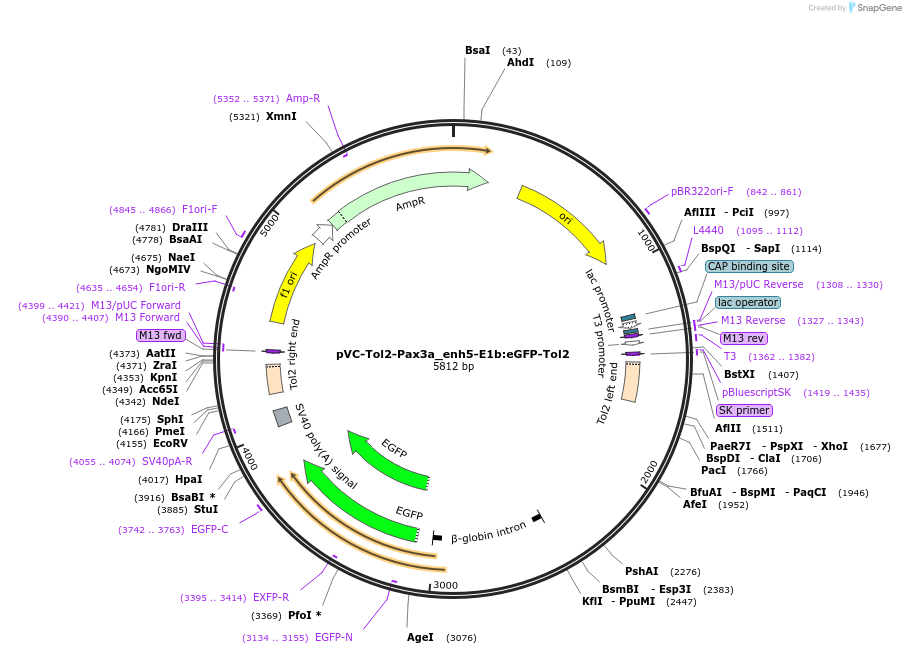

Backbone
-
Vector backbonepMT
- Backbone size w/o insert (bp) 3671
- Total vector size (bp) 5812
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namepax3a_enh5-E1b:eGFP
-
SpeciesD. rerio (zebrafish)
-
Insert Size (bp)2141
- Promoter E1b minimal promoter
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer tctagaactagtggatc (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byE1b minimal promoter from plasmid #37846 (N. Ahituv)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/450684v2 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pVC-Tol2-Pax3a_enh5-E1b:eGFP-Tol2 was a gift from Tatjana Sauka-Spengler (Addgene plasmid # 119061 ; http://n2t.net/addgene:119061 ; RRID:Addgene_119061) -
For your References section:
Ac/Ds transposition for CRISPR/dCas9-SID4x epigenome modulation in zebrafish. Chong-Morrison V, Mayes S, Simoes FC, Senanayake U, Carroll DS, Riley PR, Wilson SW, Sauka-Spengler T. Biol Open. 2023 Jun 15;12(6):bio059995. doi: 10.1242/bio.059995. Epub 2023 Jun 27. 10.1242/bio.059995 PubMed 37367831
