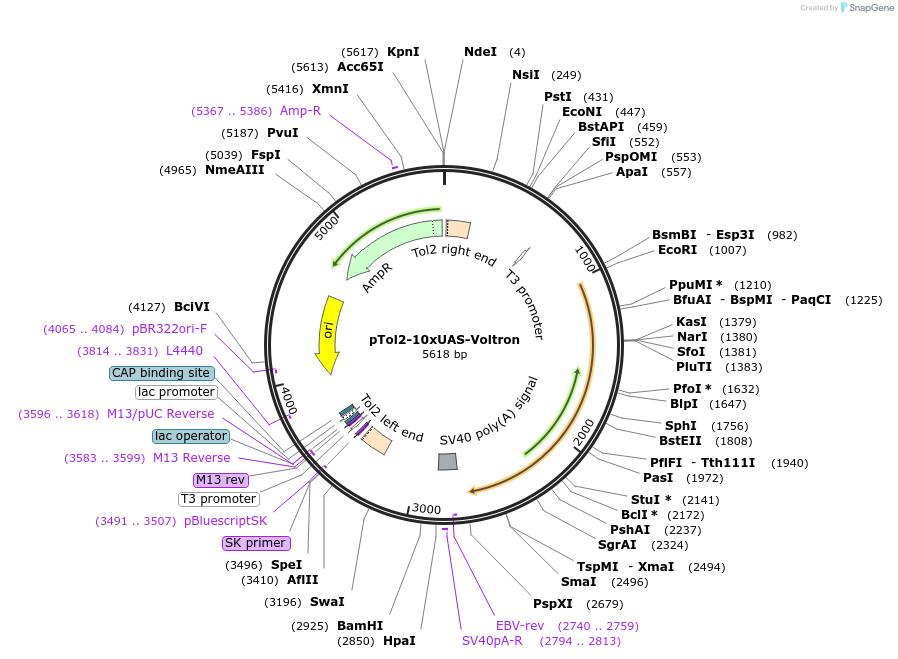

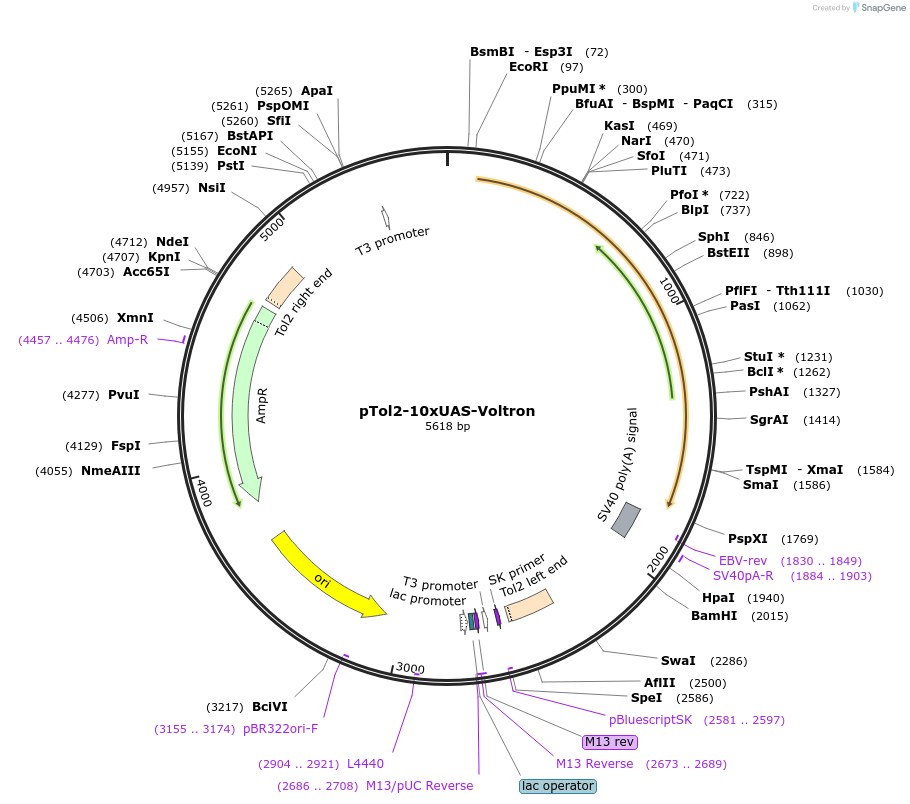

pTol2-10xUAS-Voltron
(Plasmid #119039)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 119039 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    10XUAS IVS sv40
  • Vector type
    Zebrafish expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Voltron
  • Species
    Synthetic
  • Promoter E1b

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

5' cloning site: EcoRI, 3' cloning site: BamHI

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTol2-10xUAS-Voltron was a gift from Eric Schreiter (Addgene plasmid # 119039 ; http://n2t.net/addgene:119039 ; RRID:Addgene_119039)
  • For your References section:

    Bright and photostable chemigenetic indicators for extended in vivo voltage imaging. Abdelfattah AS, Kawashima T, Singh A, Novak O, Liu H, Shuai Y, Huang YC, Campagnola L, Seeman SC, Yu J, Zheng J, Grimm JB, Patel R, Friedrich J, Mensh BD, Paninski L, Macklin JJ, Murphy GJ, Podgorski K, Lin BJ, Chen TW, Turner GC, Liu Z, Koyama M, Svoboda K, Ahrens MB, Lavis LD, Schreiter ER. Science. 2019 Aug 1. pii: science.aav6416. doi: 10.1126/science.aav6416. 10.1126/science.aav6416 PubMed 31371562
