Desmoplakin II acceptor only control (F40-based no force control)
(Plasmid #118720)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 118720 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

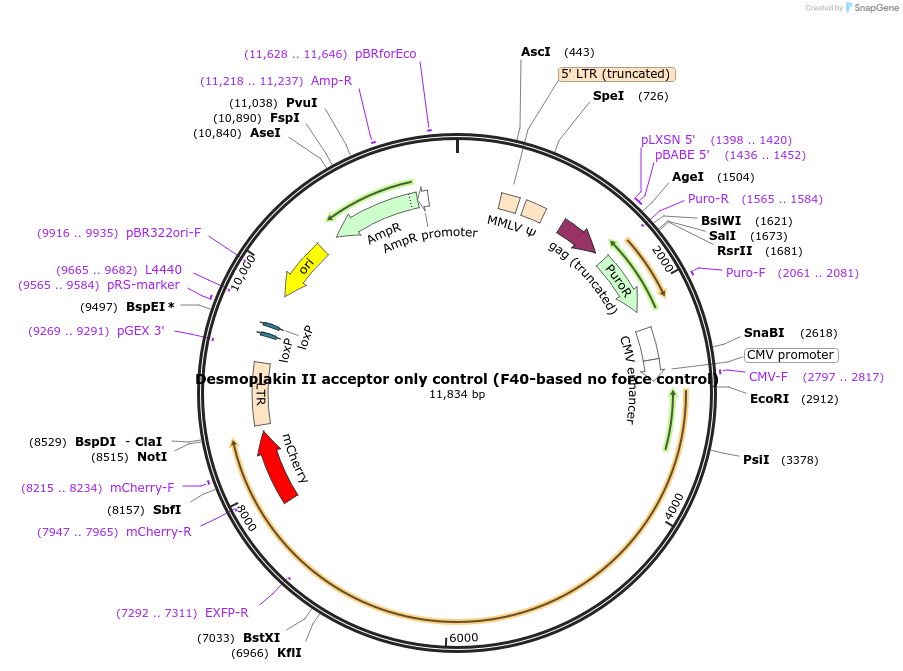

Backbone

  • Vector backbone
    pLPCX
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 6265
  • Total vector size (bp) 11834
  • Modifications to backbone
    modified multiple cloning site
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    human Desmoplakin II (1-1353)-[YPet(short)(Y67G)-F40-mCherry]
  • Alt name
    Desmoplakin II acceptor only control for F40-based no force control
  • Alt name
    DPII-tr (dYF40C)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    5589
  • Mutation
    truncation after aa1353; Y67G mutation in YPet(short) to disrupt chromophore formation
  • GenBank ID
    NM_001008844.1
  • Entrez Gene
    DSP (a.k.a. DCWHKTA, DP)
  • Promoter CMV
  • Tag / Fusion Protein
    • YPet(short)-F40-mCherry(Y72L) (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer AGCTcGTTTAGTGAACCGTCAGATC
  • 3′ sequencing primer ACCTACAGGTGGGGTCTTTCATTCCC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Desmoplakin II acceptor only control (F40-based no force control) was a gift from Carsten Grashoff (Addgene plasmid # 118720 ; http://n2t.net/addgene:118720 ; RRID:Addgene_118720)

  • For your References section:

    Mechanical loading of desmosomes depends on the magnitude and orientation of external stress. Price AJ, Cost AL, Ungewiss H, Waschke J, Dunn AR, Grashoff C. Nat Commun. 2018 Dec 11;9(1):5284. doi: 10.1038/s41467-018-07523-0. 10.1038/s41467-018-07523-0 PubMed 30538252
