pCAG-SpCas9-2A-GFP-noITR
(Plasmid
#118415)
-
PurposeCas9 GFP plasmid constitutively expressed from CAG promoter. AAV repeat region removed to increase expression
-
Depositing Lab
-

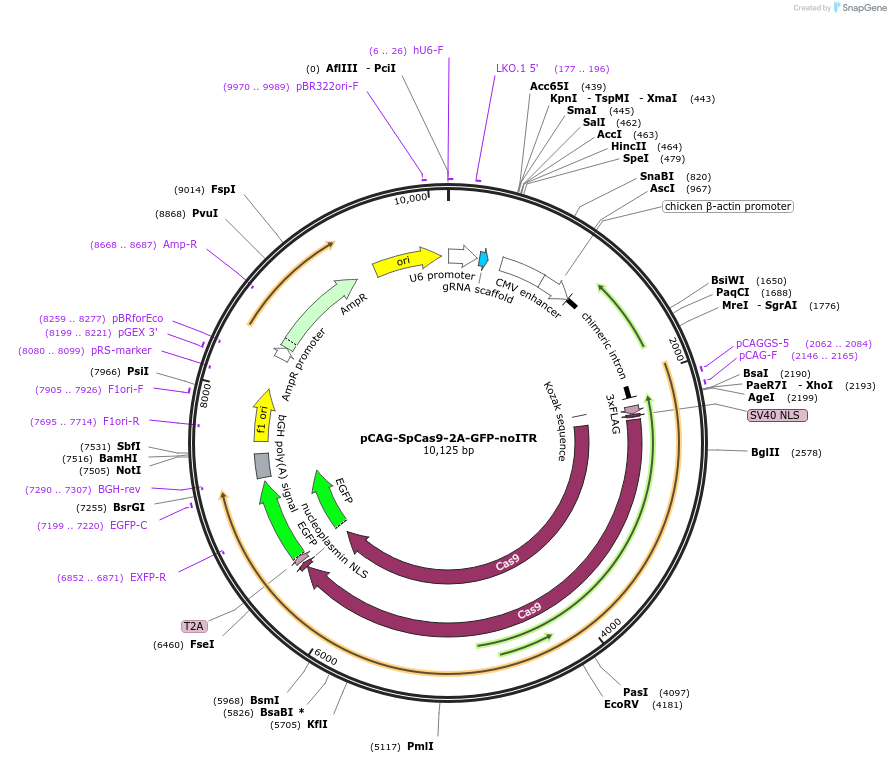

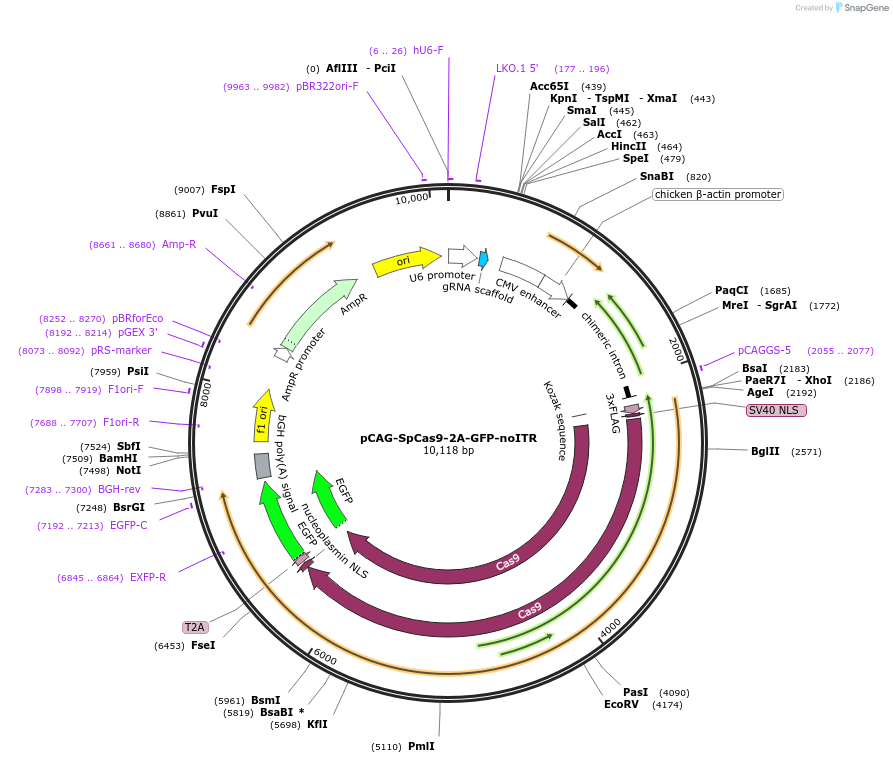

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 118415 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepSpCas9(BB)-2A-GFP (PX458)
-
Modifications to backbonePlasmid ITR regions were removed by restriction digestion with NotI and SbfI to remove a 145 bp fragment. A fragment containing a BamHI site with two sticky ends compatible with the NotI and SbfI was cloned in. doi: 10.3389/fcell.2018.00054
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCas9
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
- 3′ cloning site unknown (unknown if destroyed)
- 5′ sequencing primer unknown (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAG-SpCas9-2A-GFP-noITR was a gift from Mark Denham (Addgene plasmid # 118415 ; http://n2t.net/addgene:118415 ; RRID:Addgene_118415) -
For your References section:
A Modified Monomeric Red Fluorescent Protein Reporter for Assessing CRISPR Activity. Hojland Knudsen C, Asgrimsdottir ES, Rahimi K, Gill KP, Frandsen S, Hvolbol Buchholdt S, Chen M, Kjems J, Febbraro F, Denham M. Front Cell Dev Biol. 2018 May 15;6:54. doi: 10.3389/fcell.2018.00054. eCollection 2018. 10.3389/fcell.2018.00054 PubMed 29868584
