PurposeRed fluorescent reporter for assessing CRISPR gRNA activity
-
Depositing Lab
-

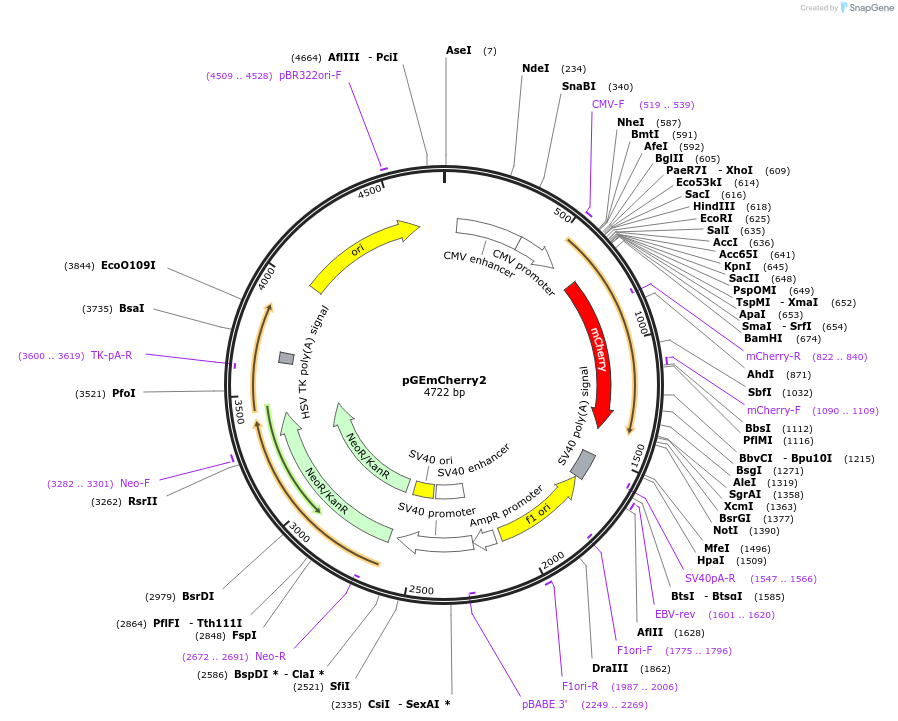

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 118413 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepmCerulean3- N1
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemCherry
-
SpeciesSynthetic
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
- 3′ cloning site unknown (unknown if destroyed)
- 5′ sequencing primer unknown (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
How to Design Genomic recognition sequence for GEmCherry2:
Genomic sequence require 20nt recognition sequence and PAM sequence.
In addition Oligos require overhangs to ligate into Xbal and BamHI sites.
Bottom strand requires BgIII site insead of BamHI to destroy site for subsequent restriction analysis. Inserted sequence may require additional nucleotide to be out of frame.
TOP Oligo 5` CTAGANNNNNNNNNNNNNNNNNNNN(PAM)C 3`
Xbal site 20nt sequence and PAM sequence and cytosine to destroy BamHI sequence.
BOTTOM Oligo 5'GATCG(MAP)NNNNNNNNNNNNNNNNNNNNT 3'
doi: 10.3389/fcell.2018.00054
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pGEmCherry2 was a gift from Mark Denham (Addgene plasmid # 118413 ; http://n2t.net/addgene:118413 ; RRID:Addgene_118413) -
For your References section:
A Modified Monomeric Red Fluorescent Protein Reporter for Assessing CRISPR Activity. Hojland Knudsen C, Asgrimsdottir ES, Rahimi K, Gill KP, Frandsen S, Hvolbol Buchholdt S, Chen M, Kjems J, Febbraro F, Denham M. Front Cell Dev Biol. 2018 May 15;6:54. doi: 10.3389/fcell.2018.00054. eCollection 2018. 10.3389/fcell.2018.00054 PubMed 29868584
