PurposeCatalytically inactive Cas9 from S. pyogenes with P2A-BlastR under the EF1a core promoter, and cloning backbone for sgRNA. Contains BsmBI sites for insertion of spacer sequences.
-
Depositing Lab
-
Publication
-

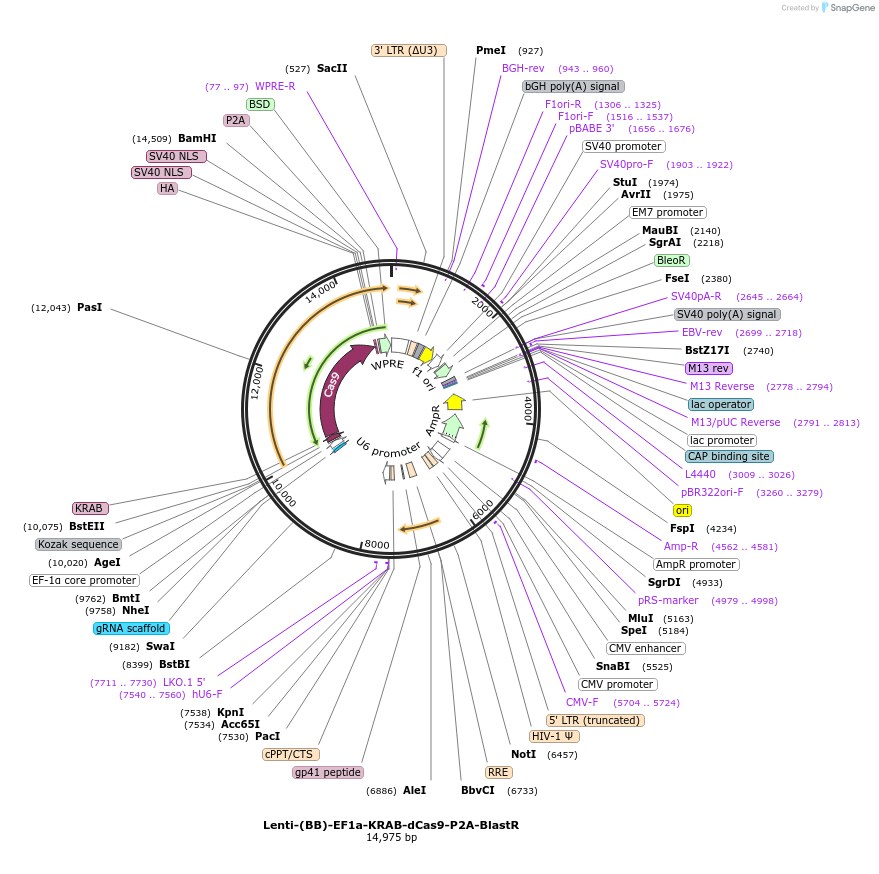

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 118154 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonelentiCRISPRv2
-
Backbone manufacturerFeng Zhang (Addgene #52961)
-
Vector typeMammalian Expression, Lentiviral, CRISPR
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Stbl3
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameKRAB-dCas9-P2A-BlastR
-
SpeciesH. sapiens (human)
-
Insert Size (bp)4907
-
MutationSee depositor comments below
- Promoter EF1a core and U6
-
Tag
/ Fusion Protein
- HA (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer GATCCGCCACCATGGATGC (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
We have also generated a version of this backbone with the hPGK promoter driving the expression of KRAB-dCas9. We advise users to test both backbones in their cell type of interest.
Note: Plasmid contains a N1396S mutation in dCas9. This mutation is not known to affect plasmid function.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Lenti-(BB)-EF1a-KRAB-dCas9-P2A-BlastR was a gift from Jorge Ferrer (Addgene plasmid # 118154 ; http://n2t.net/addgene:118154 ; RRID:Addgene_118154)
