pbGH
(Plasmid #118061)

• Purpose: GBPart - Bovine growth hormone terminator
• Depositing Lab: Koen Venken
• Publication: Sarrion-Perdigones et al Nat Commun. 2019 Dec 13;10(1):5710. doi: 10.1038/s41467-019-13651-y.

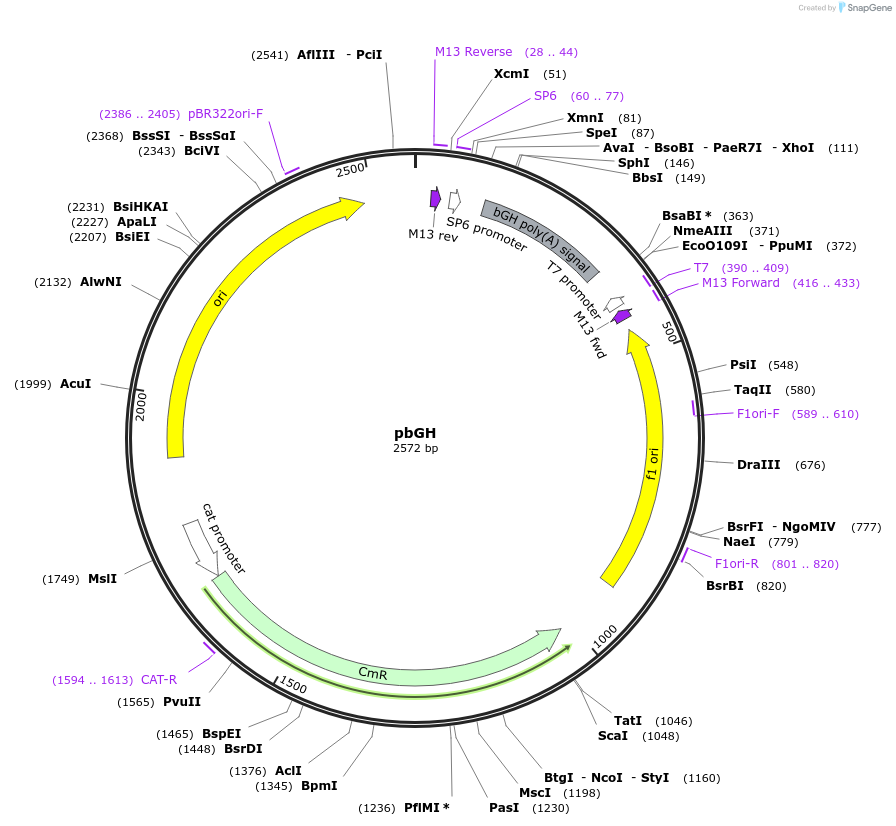

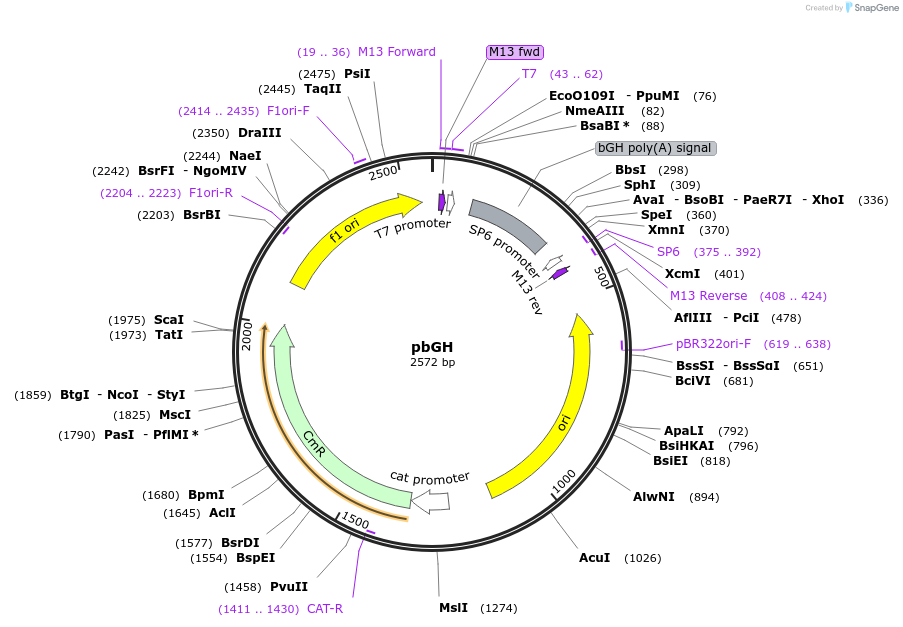

Backbone

• Vector backbone: pUPD3
• Backbone manufacturer: Self made; Derived from pBluescriptSK
• Backbone size w/o insert (bp): 2343
• Total vector size (bp): 2572
• Modifications to backbone: Chloramphenicol Resistance
• Vector type: Synthetic Biology ; gbPart

Growth in Bacteria

• Bacterial Resistance(s): Chloramphenicol, 25 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: bgH_poly(A)
• Alt name: Bovine growth hormone terminator
• Alt name: Bovine growth hormone 3’ UTR and poly(A) signal
• Species: B. taurus (bovine), Synthetic
• Insert Size (bp): 229

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BsmBI (destroyed during cloning)
• 3′ cloning site: BsmBI (destroyed during cloning)
• 5′ sequencing primer: gtaaaacgacggccagt
• 3′ sequencing primer: gtcatagctgtttcctg

Resource Information

• Supplemental Documents:
  • pbGH_poly(A).gb
• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Insert can be released with BsaI
