Omega 2
(Plasmid
#118047)
-
Purpose(Empty Backbone) GoldenBraid2.0 Omega 2 destination vector
-
Depositing Lab
-

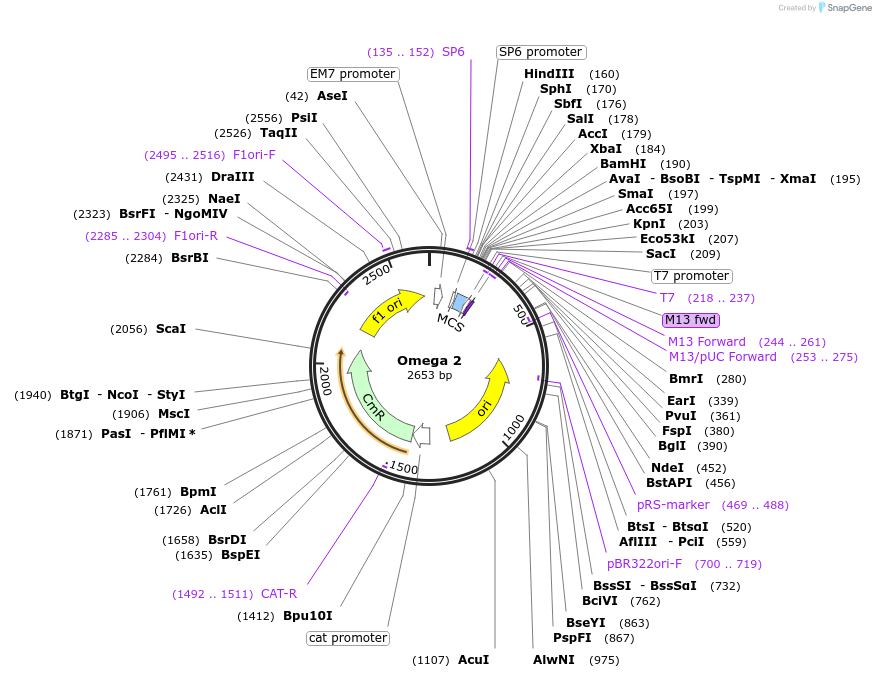

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 118047 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneColE1 vector Omega2
-
Backbone manufacturerSelf made; Derived from pBluescriptSK
- Backbone size (bp) 2171
-
Modifications to backboneChloraphenicol Resistance; GB2.0 Omega2 cassette
-
Vector typeMammalian Expression, Bacterial Expression, Insect Expression, Synthetic Biology ; Assembly of GB2.0 transcriptional units
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer aat gag ctg att taa caa aaa ttt aac gcg
- 3′ sequencing primer ctt ttt acg gtt cct ggc ctt ttg (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
This is a BmsBI GB2.0 Omega entry vector. Any assembled unit(s) can be released with BsaI for further cloning into Alfa level vectors.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Omega 2 was a gift from Koen Venken (Addgene plasmid # 118047 ; http://n2t.net/addgene:118047 ; RRID:Addgene_118047) -
For your References section:
Examining multiple cellular pathways at once using multiplex hextuple luciferase assaying. Sarrion-Perdigones A, Chang L, Gonzalez Y, Gallego-Flores T, Young DW, Venken KJT. Nat Commun. 2019 Dec 13;10(1):5710. doi: 10.1038/s41467-019-13651-y. 10.1038/s41467-019-13651-y PubMed 31836712
