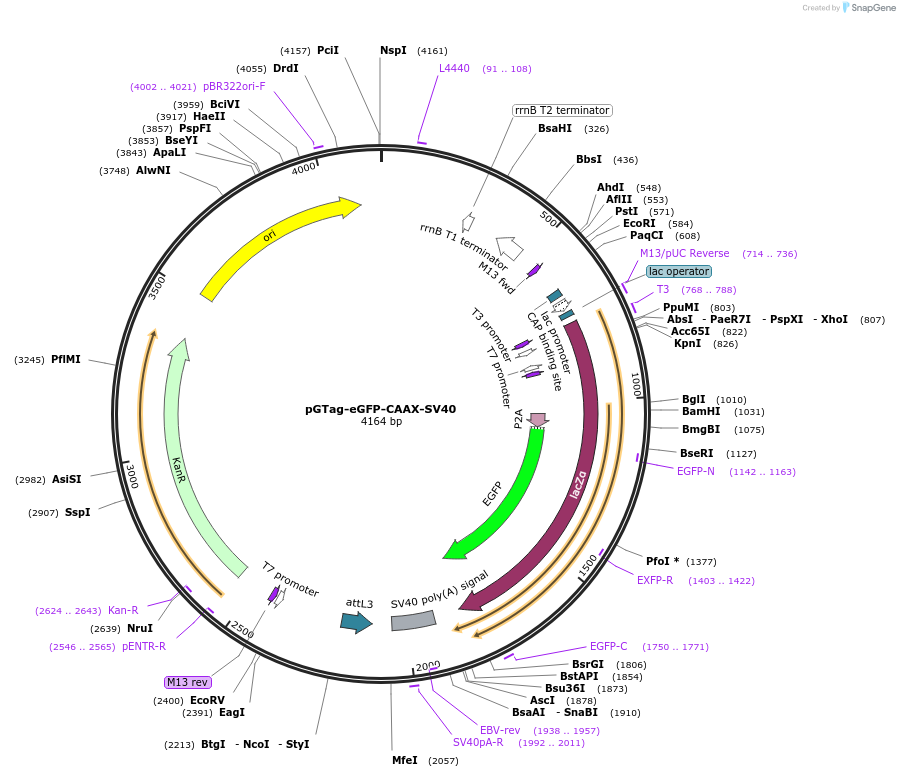

pGTag-eGFP-CAAX-SV40
(Plasmid #117815)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 117815 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pK
  • Backbone manufacturer
    Karl J. Clark
  • Backbone size w/o insert (bp) 2958
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    eGFP
  • Alt name
    GFP
  • Species
    H. sapiens (human), D. rerio (zebrafish)
  • Insert Size (bp)
    1206
  • Tag / Fusion Protein
    • CAAX (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GCATGGATGTTTTCCCAGTC
  • 3′ sequencing primer atggctcataacaccccttg
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Online tools and cloning help available at <www.genesculpt.org/gtaghd/>. May work in additional species beyond those listed. Please visit https://www.biorxiv.org/content/10.1101/431627v2 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGTag-eGFP-CAAX-SV40 was a gift from Jeffrey Essner (Addgene plasmid # 117815 ; http://n2t.net/addgene:117815 ; RRID:Addgene_117815)

  • For your References section:

    Efficient targeted integration directed by short homology in zebrafish and mammalian cells. Wierson WA, Welker JM, Almeida MP, Mann CM, Webster DA, Torrie ME, Weiss TJ, Kambakam S, Vollbrecht MK, Lan M, McKeighan KC, Levey J, Ming Z, Wehmeier A, Mikelson CS, Haltom JA, Kwan KM, Chien CB, Balciunas D, Ekker SC, Clark KJ, Webber BR, Moriarity BS, Solin SL, Carlson DF, Dobbs DL, McGrail M, Essner J. Elife. 2020 May 15;9. pii: 53968. doi: 10.7554/eLife.53968. 10.7554/eLife.53968 PubMed 32412410
