pCS2+_NLS-Tir1-HA
(Plasmid #117716)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 117716 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

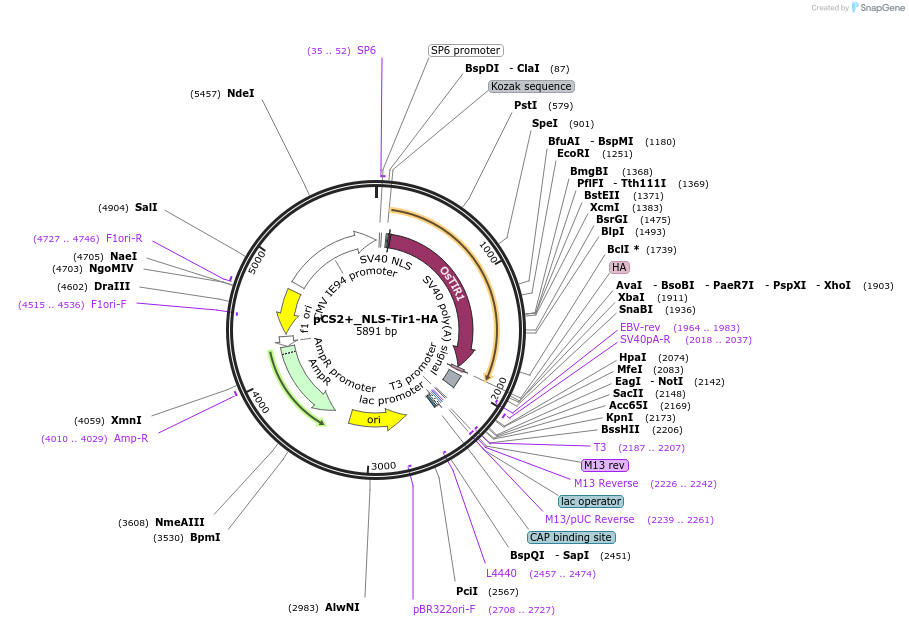

Backbone

  • Vector backbone
    pCS2+
  • Backbone manufacturer
    RZPD
  • Backbone size w/o insert (bp) 4094
  • Total vector size (bp) 5891
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TRANSPORT INHIBITOR RESPONSE 1
  • Alt name
    TIR1
  • Species
    Oryza sativa
  • Mutation
    codon-optimized TIR1 for murine expression
  • Promoter SP6
  • Tags / Fusion Proteins
    • NLS (N terminal on insert)
    • HA (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site ClaI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer atttaggtgacactataga
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    We received the backbone containing codon-optimized NLS-Tir1 from Francis Stewart (TU Dresden, BIOTEC Institute, Tatzberg 47-49, 01307 Dresden, Germany

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The codon-optimized NLS-TIR1 is described in:

Baker, O. et al. RAC-tagging: Recombineering And Cas9-assisted targeting for protein tagging and conditional analyses. Sci Rep 6, 25529 (2016).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCS2+_NLS-Tir1-HA was a gift from Joerg Mansfeld (Addgene plasmid # 117716 ; http://n2t.net/addgene:117716 ; RRID:Addgene_117716)

  • For your References section:

    Conditional control of fluorescent protein degradation by an auxin-dependent nanobody. Daniel K, Icha J, Horenburg C, Muller D, Norden C, Mansfeld J. Nat Commun. 2018 Aug 17;9(1):3297. doi: 10.1038/s41467-018-05855-5. 10.1038/s41467-018-05855-5 [pii] PubMed 30120238
