pEPOR1CB0114
(Plasmid
#117553)
-
PurposeLevel1 Golden Gate Cassette: sgRNA cassette for spCas9, targeting NbPDS gene in N. benthamiana
-
Depositing Lab
-

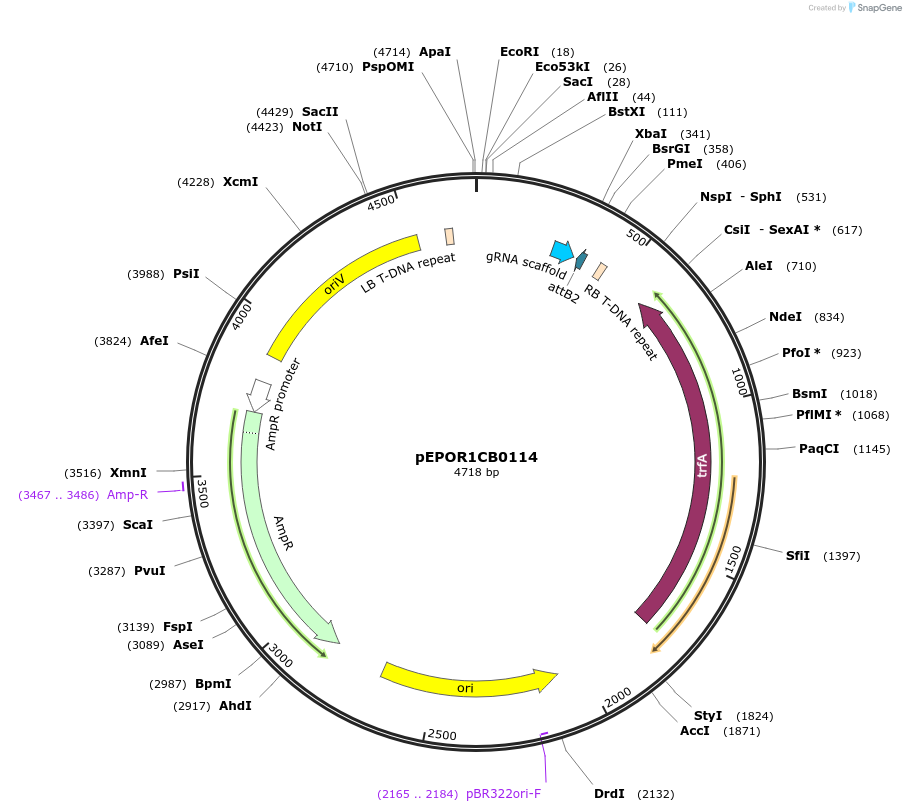

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 117553 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepICH47751
-
Vector typePlant Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePromoter_AtU6-26 + sgRNA_NbPDS1 N. benthamiana
-
SpeciesSynthetic
- Promoter At U6-26 (pICSL90002)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsaI (destroyed during cloning)
- 3′ cloning site BsaI (destroyed during cloning)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/early/2018/09/20/422766 for BioRxiv preprint
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEPOR1CB0114 was a gift from Nicola Patron (Addgene plasmid # 117553 ; http://n2t.net/addgene:117553 ; RRID:Addgene_117553) -
For your References section:
Comparison of efficiency and specificity of CRISPR-associated (Cas) nucleases in plants: An expanded toolkit for precision genome engineering. Raitskin O, Schudoma C, West A, Patron NJ. PLoS One. 2019 Feb 27;14(2):e0211598. doi: 10.1371/journal.pone.0211598. eCollection 2019. 10.1371/journal.pone.0211598 PubMed 30811422
