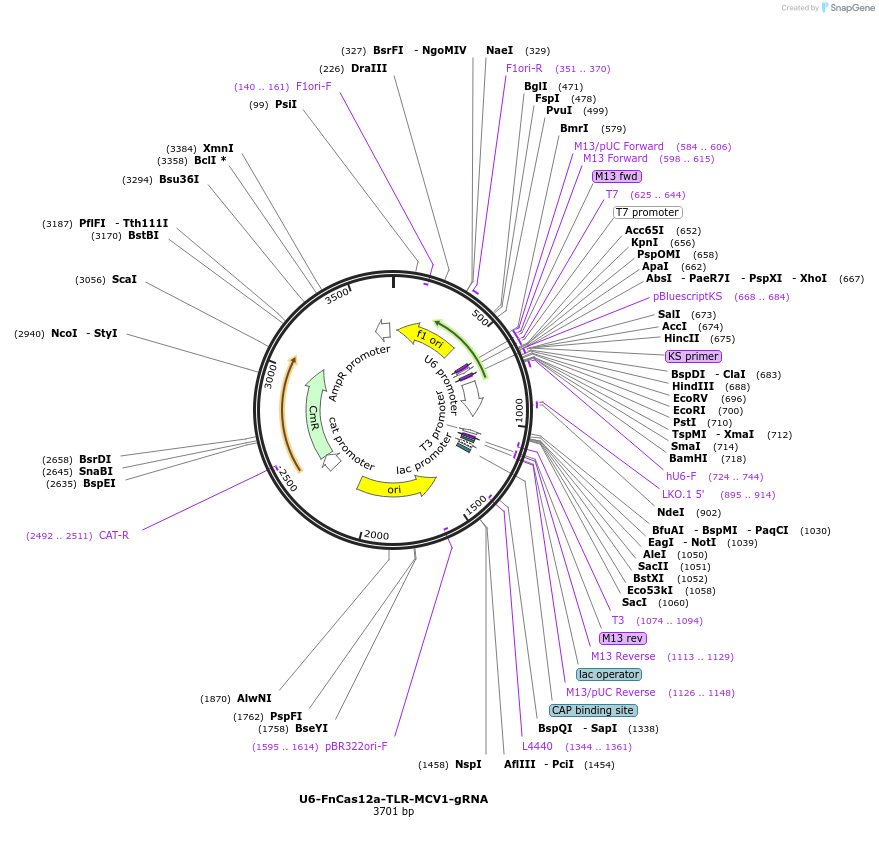

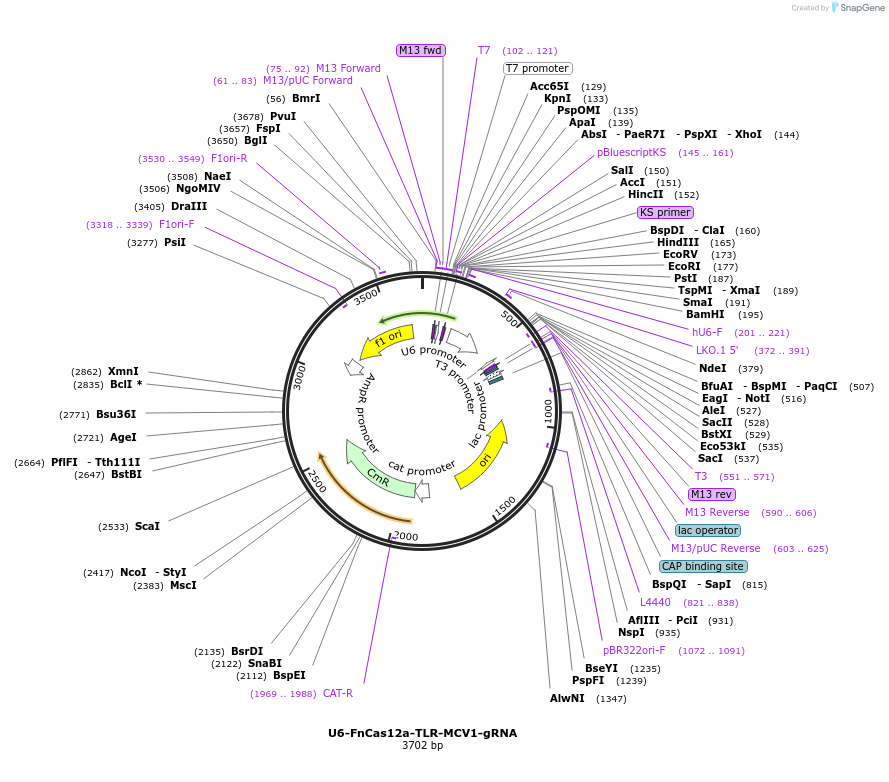

U6-FnCas12a-TLR-MCV1-gRNA
(Plasmid #117412)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 117412 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pBluescript SK (+)
  • Modifications to backbone
    Added the gRNA sequence of FnCas12a targeting TLR2.0

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    FnCas12a gRNA targeting TLR 2.0
  • Species
    Synthetic
  • Insert Size (bp)
    100
  • Promoter U6

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CGTGACGTAGAAAGTAATAATTTC
  • 3′ sequencing primer CCTCGAGCCGCGGCCAAAG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://www.biorxiv.org/content/10.1101/864199v1 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    U6-FnCas12a-TLR-MCV1-gRNA was a gift from Erik Sontheimer (Addgene plasmid # 117412 ; http://n2t.net/addgene:117412 ; RRID:Addgene_117412)

  • For your References section:

    Efficient Homology-Directed Repair with Circular Single-Stranded DNA Donors. Iyer S, Mir A, Vega-Badillo J, Roscoe BP, Ibraheim R, Zhu LJ, Lee J, Liu P, Luk K, Mintzer E, Guo D, Soares de Brito J, Emerson CP Jr, Zamore PD, Sontheimer EJ, Wolfe SA. CRISPR J. 2022 Oct;5(5):685-701. doi: 10.1089/crispr.2022.0058. Epub 2022 Sep 7. 10.1089/crispr.2022.0058 PubMed 36070530
