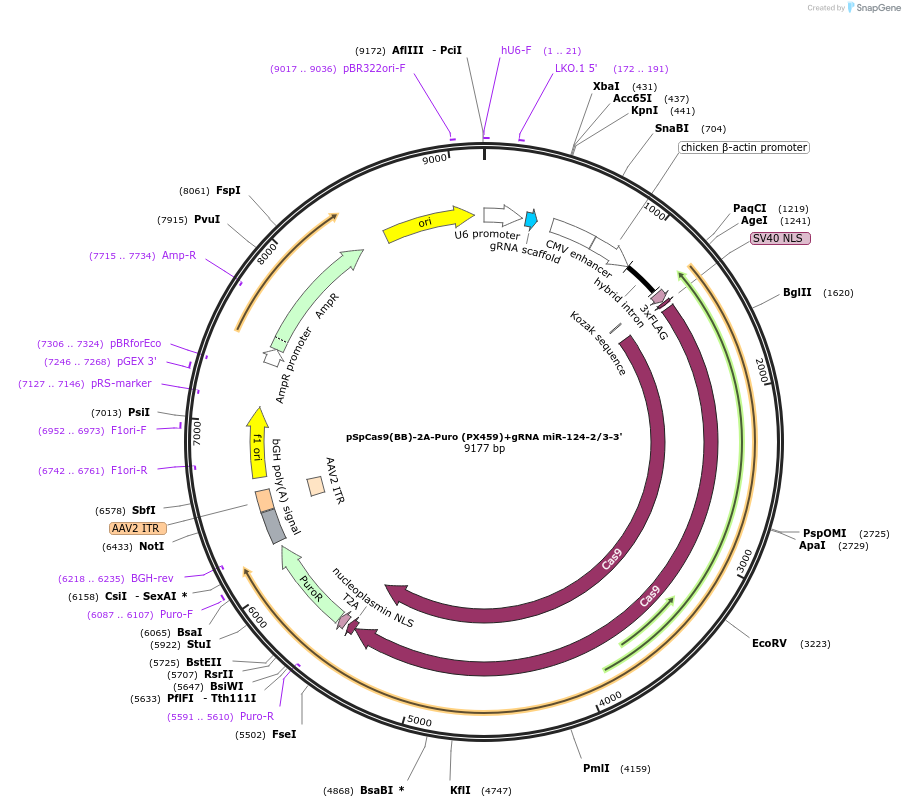

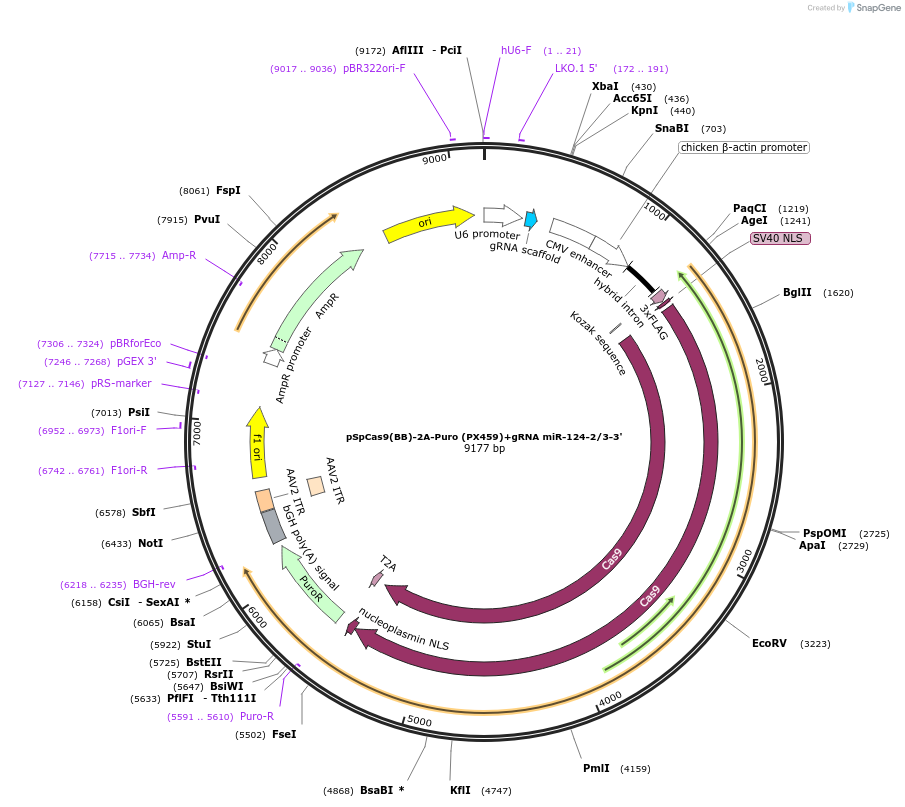

pSpCas9(BB)-2A-Puro (PX459)+gRNA miR-124-2/3-3'
(Plasmid #117325)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 117325 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    PX459
  • Backbone manufacturer
    Zhang Lab
  • Backbone size w/o insert (bp) 9157
  • Vector type
    Mammalian Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    gRNA miR-124-2/3-3'
  • Alt name
    NR_029670
  • Alt name
    ENSG00000207598
  • gRNA/shRNA sequence
    gcacgcggtgaatgccaagag
  • Species
    Synthetic
  • Insert Size (bp)
    21
  • Entrez Gene
    MIR124-3 (a.k.a. MIRN124-3, MIRN124A3, mir-124-3)
  • Promoter U6
  • Tag / Fusion Protein
    • 3xFLAG (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BbsI (destroyed during cloning)
  • 5′ sequencing primer TTTCTTGGGTAGTTTGCAGTTTT
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Cas9 with NLS included; cuts two loci (2 and 3) of miR-124

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSpCas9(BB)-2A-Puro (PX459)+gRNA miR-124-2/3-3' was a gift from Volker Busskamp (Addgene plasmid # 117325 ; http://n2t.net/addgene:117325 ; RRID:Addgene_117325)

  • For your References section:

    Combined Experimental and System-Level Analyses Reveal the Complex Regulatory Network of miR-124 during Human Neurogenesis. Kutsche LK, Gysi DM, Fallmann J, Lenk K, Petri R, Swiersy A, Klapper SD, Pircs K, Khattak S, Stadler PF, Jakobsson J, Nowick K, Busskamp V. Cell Syst. 2018 Sep 28. pii: S2405-4712(18)30358-2. doi: 10.1016/j.cels.2018.08.011. 10.1016/j.cels.2018.08.011 PubMed 30292704
