pEG302 22aa SunTag NtDRMcd (no NLS) g4+g10+g18 (FWA)
(Plasmid
#117168)
-
PurposeCRISPR Cas9 SunTag system to target NtDRMcd (without an NLS) to the FWA locus with three guide RNAs
-
Depositing Lab
-
Sequence Information
-
Sequences (5) — Accept Affinity Reagent Sequence Policy
-
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 117168 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepEG302
-
Vector typePlant Expression, CRISPR, Synthetic Biology
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-

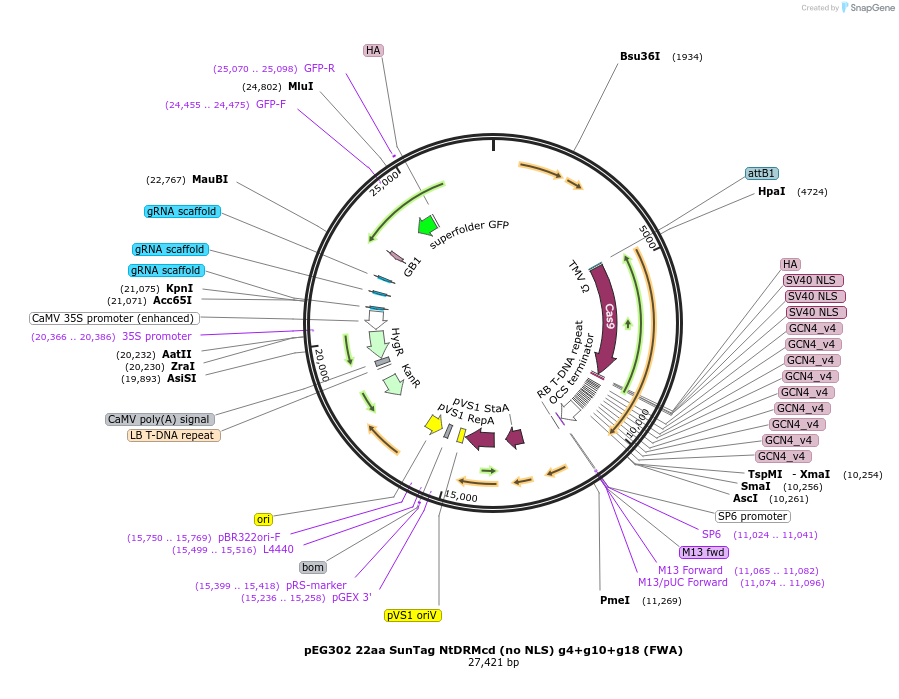

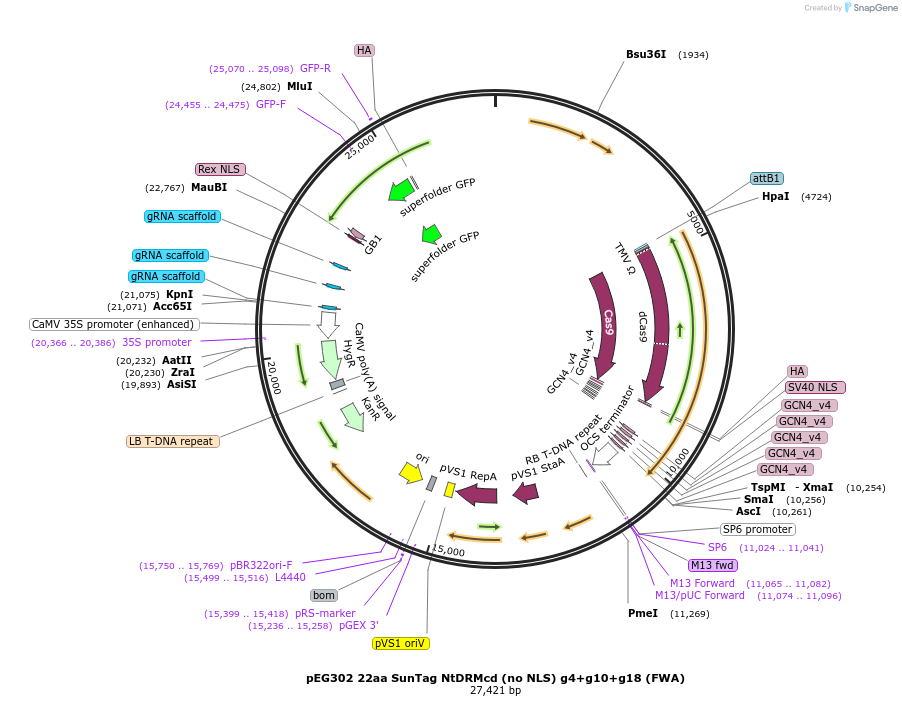

Gene/Insert nameg18_U6_g10_U6_g4_U6_NOS_NLS_GB1_noNLS_linker_DRMcd_linker_sfGFP_scFv_UBQ10_Insulator_UBQ10_Ω_dCas9_1xHA_3xNLS_linker_10xGCN4_OCS
-
Alt name22aa SunTag NtDRMcd (no NLS) g4+g10+g18
-
Insert Size (bp)17388
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEG302 22aa SunTag NtDRMcd (no NLS) g4+g10+g18 (FWA) was a gift from Steven Jacobsen (Addgene plasmid # 117168 ; http://n2t.net/addgene:117168 ; RRID:Addgene_117168) -
For your References section:
Site-specific manipulation of Arabidopsis loci using CRISPR-Cas9 SunTag systems. Papikian A, Liu W, Gallego-Bartolome J, Jacobsen SE. Nat Commun. 2019 Feb 13;10(1):729. doi: 10.1038/s41467-019-08736-7. 10.1038/s41467-019-08736-7 PubMed 30760722
