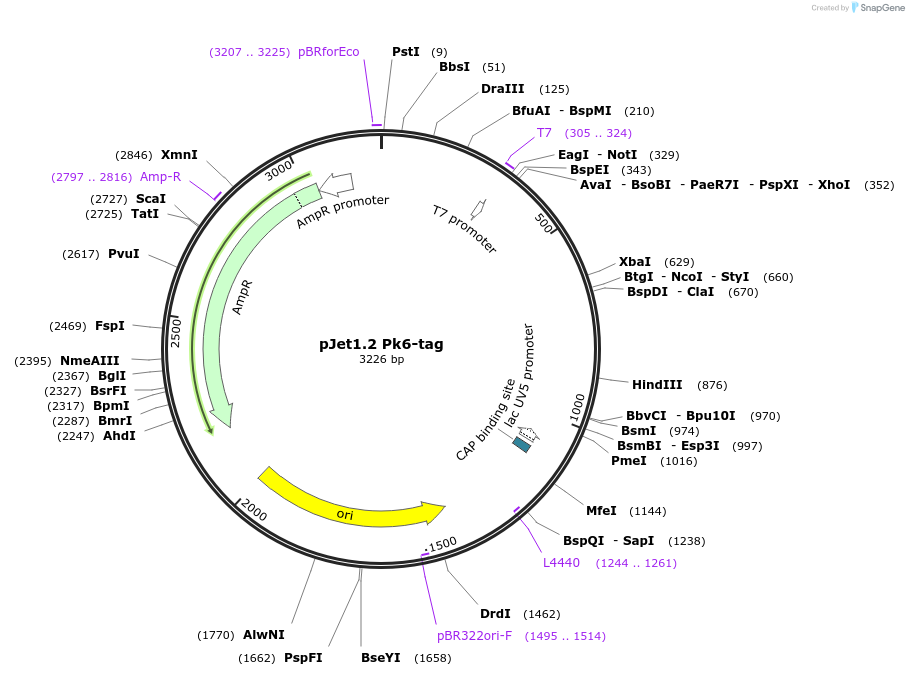

pJet1.2 Pk6-tag
(Plasmid #117127)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 117127 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pJet1.2
  • Backbone manufacturer
    Thermo scientific
  • Backbone size w/o insert (bp) 2974
  • Total vector size (bp) 3226
  • Vector type
    Golden gate donor vector for gene targeting in Bacillus subtilis

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    6xPK tag
  • Alt name
    V5 epitope tag
  • Insert Size (bp)
    230
  • GenBank ID
  • Tag / Fusion Protein
    • 6xPK tag (C terminal on insert)

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer CGACTCACTATAGGGAGAGCGGC
  • 3′ sequencing primer AAGAACATCGATTTTCCATGGCAG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Donor vector for Golden gate assembly reactions that encodes for a C-terminal 6xPK tag (V5). Overhangs generated upon BsaI cleavage : AGCG (RtagN) and TAAG (RtagC).

(Gruber lab reference pSG1107)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJet1.2 Pk6-tag was a gift from Stephan Gruber (Addgene plasmid # 117127 ; http://n2t.net/addgene:117127 ; RRID:Addgene_117127)

  • For your References section:

    High-Throughput Allelic Replacement Screening in Bacillus subtilis. Diebold-Durand ML, Burmann F, Gruber S. Methods Mol Biol. 2019;2004:49-61. doi: 10.1007/978-1-4939-9520-2_5. 10.1007/978-1-4939-9520-2_5 PubMed 31147909
