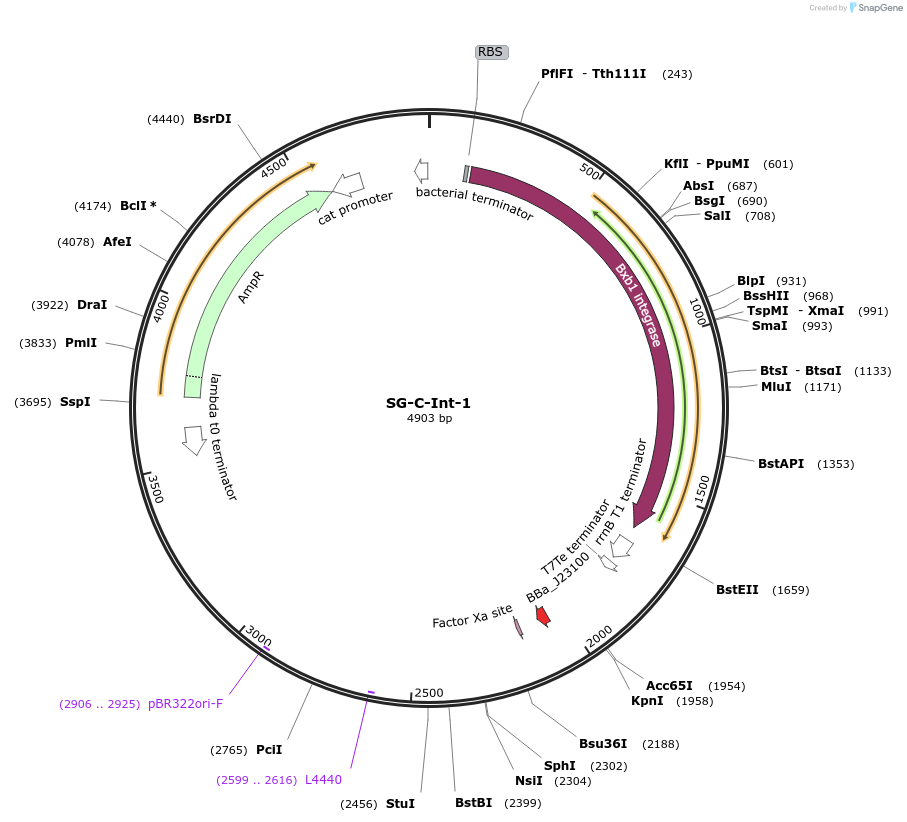

SG-C-Int-1
(Plasmid #117030)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 117030 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    J66100
  • Backbone size w/o insert (bp) 2327
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Constitutive integrase cassette - Bxb1
  • Species
    Synthetic
  • Insert Size (bp)
    2574

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note that some discrepancies were found between Addgene's quality control result and the depositor's provided Genbank sequence. The depositor noted that these discrepancies do NOT affect plasmid function.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    SG-C-Int-1 was a gift from Jerome Bonnet (Addgene plasmid # 117030 ; http://n2t.net/addgene:117030 ; RRID:Addgene_117030)

  • For your References section:

    Hierarchical composition of reliable recombinase logic devices. Guiziou S, Mayonove P, Bonnet J. Nat Commun. 2019 Jan 28;10(1):456. doi: 10.1038/s41467-019-08391-y. 10.1038/s41467-019-08391-y PubMed 30692530
