pFS_0453_pET30_pCat-tetR-Term-ptetA-FsRT-Cas1(opt)-Cas2(opt)_T7term_ARRAY2_FaqI
(Plasmid #117006)

• Purpose: Expresses E. coli codon-optimized FsRT-Cas1-Cas2 under ptetA promoter, encodes FsCRISPR array 2, compatible with SENECA acquisition readout
• Depositing Lab: Randall Platt
• Publication: Schmidt et al Nature. 2018 Oct;562(7727):380-385. doi: 10.1038/s41586-018-0569-1. Epub 2018 Oct 3.

Backbone

• Vector backbone: pET30b+
• Backbone manufacturer: Novagen
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): Stbl3
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: Fusicatenibacter saccharivorans RT-Cas1-Cas2
• Species: Synthetic
• Promoter: T7

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: Unknown (unknown if destroyed)
• 3′ cloning site: Unknown (unknown if destroyed)
• 5′ sequencing primer: T7
• 3′ sequencing primer: T7-term

Resource Information

• Supplemental Documents:
  • pFS_0453_pET30_pCat-tetR-Term-ptetA-FsRT-Cas1(opt)-Cas2(opt)_T7term_ARRAY2_FaqI.gb
• Articles Citing this Plasmid:
  • 2 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

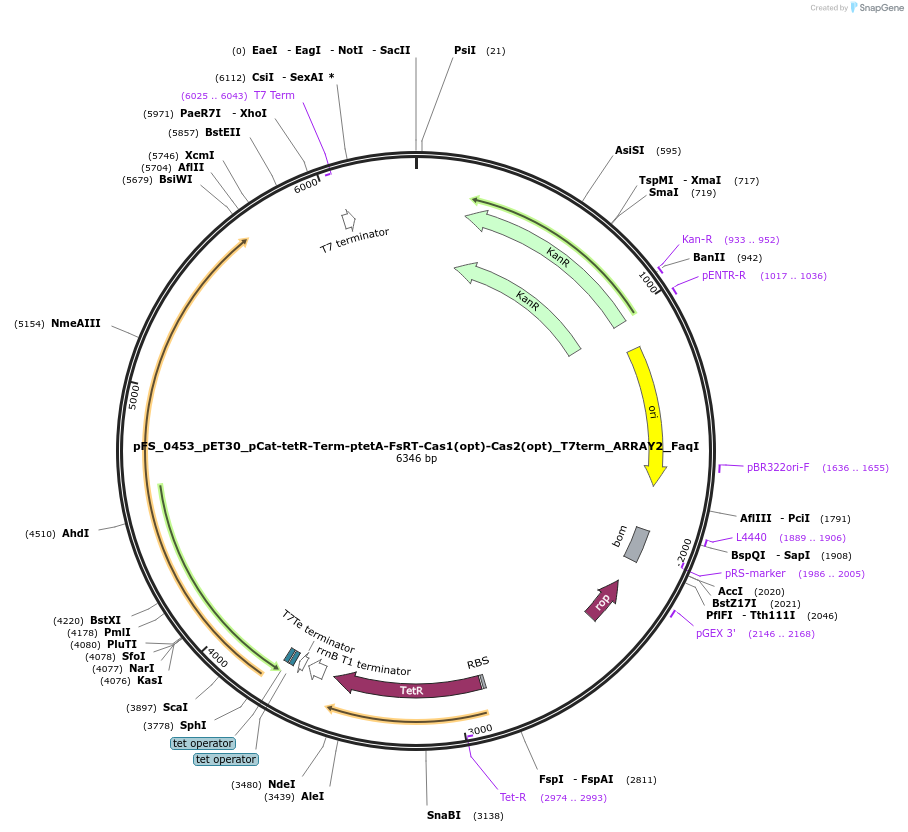

Please see the annotated GenBank file and the additional image file for the location of specific features in the sequence of this plasmid.
