pFS_0272_pET30_pCat-tetR-Term-ptetA-Rluc-rrnBterm_Fusicatenibacter_saccharivorans_ARRAY2_FaqI
(Plasmid
#116956)
-
PurposeExpresses FsRT-Cas1-Cas2 under pT7lac and Rluc under ptetA promoter, encodes FsCRISPR array 2, compatible with SENECA acquisition readout
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 116956 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepET30b+
-
Backbone manufacturerNovagen
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Stbl3
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameFusicatenibacter saccharivorans RT-Cas1-Cas2
-
SpeciesSynthetic
- Promoter T7
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Unknown (unknown if destroyed)
- 3′ cloning site Unknown (unknown if destroyed)
- 5′ sequencing primer T7
- 3′ sequencing primer T7-term (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please see the annotated GenBank file and the additional image file for the location of specific features in the sequence of this plasmid.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pFS_0272_pET30_pCat-tetR-Term-ptetA-Rluc-rrnBterm_Fusicatenibacter_saccharivorans_ARRAY2_FaqI was a gift from Randall Platt (Addgene plasmid # 116956 ; http://n2t.net/addgene:116956 ; RRID:Addgene_116956) -
For your References section:
Transcriptional recording by CRISPR spacer acquisition from RNA. Schmidt F, Cherepkova MY, Platt RJ. Nature. 2018 Oct;562(7727):380-385. doi: 10.1038/s41586-018-0569-1. Epub 2018 Oct 3. 10.1038/s41586-018-0569-1 PubMed 30283135

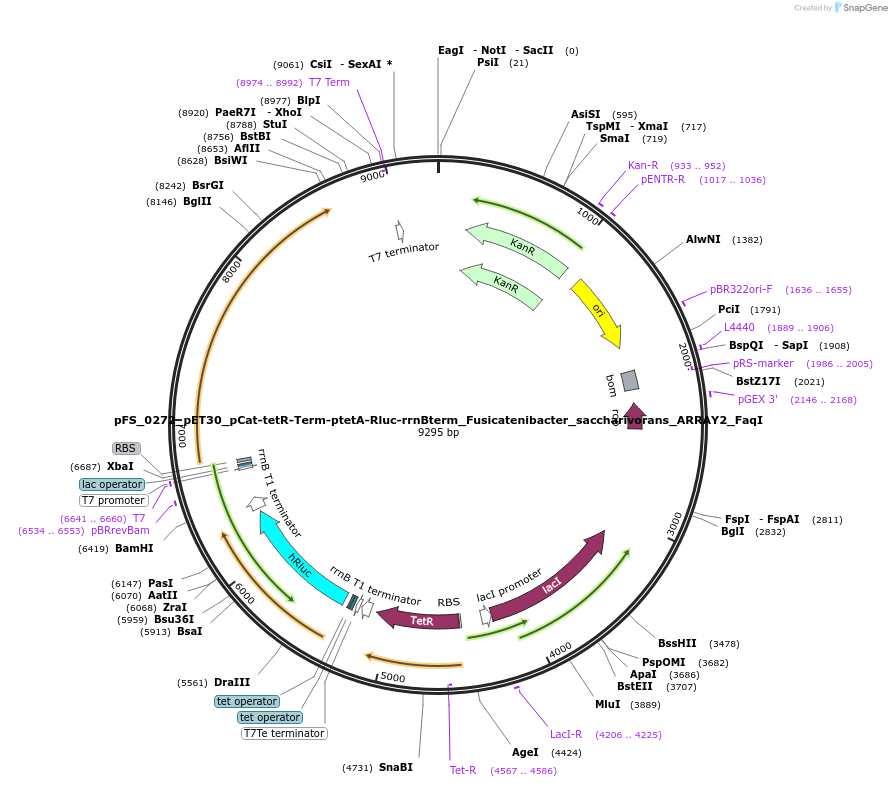

Map uploaded by the depositor.
