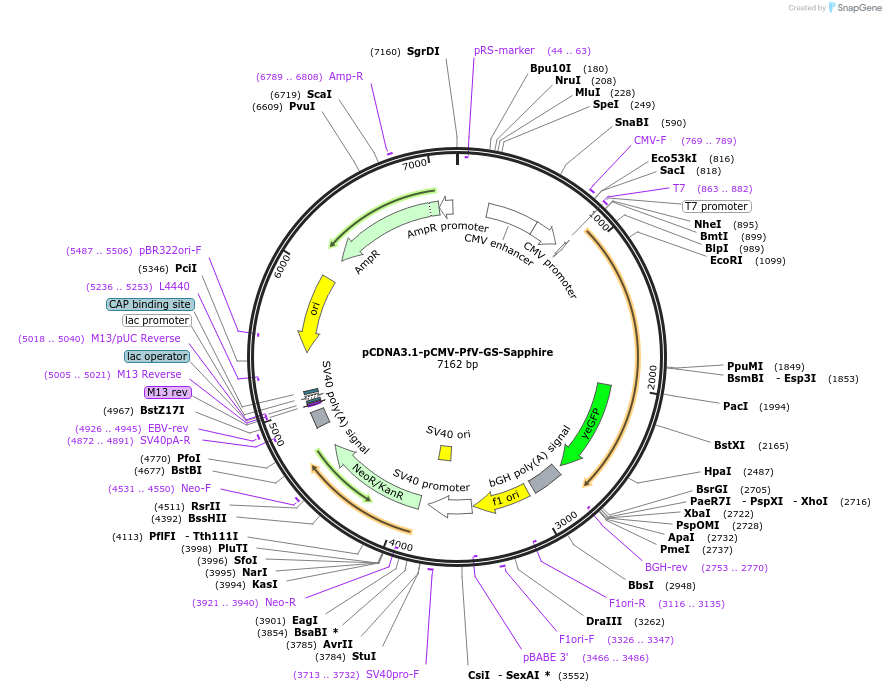

pCDNA3.1-pCMV-PfV-GS-Sapphire
(Plasmid #116933)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 116933 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone size w/o insert (bp) 5344
  • Total vector size (bp) 7159
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Pfv
  • Species
    Pyrococcus furiosus
  • Insert Size (bp)
    1035
  • GenBank ID
    AB214633.1
  • Promoter CMV
  • Tag / Fusion Protein
    • Sapphire (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer TCCGCCCCATTGACGCAAAT
  • 3′ sequencing primer GGAGGGGCAAACAACAGAT
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCDNA3.1-pCMV-PfV-GS-Sapphire was a gift from Liam Holt (Addgene plasmid # 116933 ; http://n2t.net/addgene:116933 ; RRID:Addgene_116933)

  • For your References section:

    mTORC1 Controls Phase Separation and the Biophysical Properties of the Cytoplasm by Tuning Crowding. Delarue M, Brittingham GP, Pfeffer S, Surovtsev IV, Pinglay S, Kennedy KJ, Schaffer M, Gutierrez JI, Sang D, Poterewicz G, Chung JK, Plitzko JM, Groves JT, Jacobs-Wagner C, Engel BD, Holt LJ. Cell. 2018 Jul 12;174(2):338-349.e20. doi: 10.1016/j.cell.2018.05.042. Epub 2018 Jun 21. 10.1016/j.cell.2018.05.042 PubMed 29937223
