pAAV-EF1α1.1-FLEX-rc [Archon1-KGC-GFP-ER2]
(Plasmid #115891)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 115891 Standard format: Plasmid sent in bacteria as agar stab 1 $85

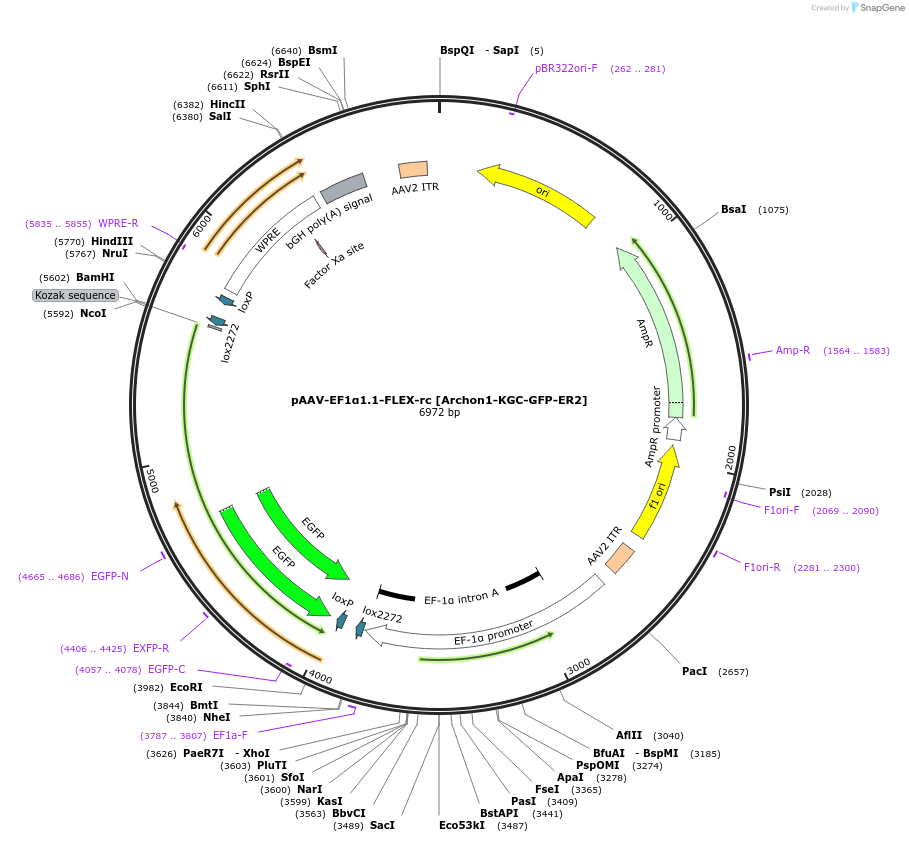

Backbone

  • Vector backbone
    pAAV-EF1a 1.1-FLEX
  • Backbone manufacturer
    original from Stratagene
  • Backbone size w/o insert (bp) 5367
  • Total vector size (bp) 6972
  • Modifications to backbone
    Exchanged the hGHpA with the bGHpA.
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Growth instructions
    Can use DH5alpha at 37°C or Stbl3 at 30°C. Carbenicillin is preferred over ampicillin. In DH5alpha this plasmid may act more like a high copy plasmid, although in Stbl3 it may act more like a low copy plasmid.
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Archon1-KGC-GFP-ER2
  • Species
    Synthetic
  • Insert Size (bp)
    1605
  • GenBank ID
    MG250280.1
  • Promoter EF1α promoter (1.1kb short version)
  • Tags / Fusion Proteins
    • KGC (C terminal on insert)
    • GFP (C terminal on insert)
    • ER2 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer ggatcttggttcattctcaag
  • 3′ sequencing primer aaagagacagcaaccagg
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The plasmid is fully sequenced in the coding sequence regions (opsin-fluorophore and important flanking regions). Multiple digestions were done to verify the vector structure. The construct and the virus were both tested in vitro.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-EF1α1.1-FLEX-rc [Archon1-KGC-GFP-ER2] was a gift from Edward Boyden (Addgene plasmid # 115891 ; http://n2t.net/addgene:115891 ; RRID:Addgene_115891)
  • For your References section:

    A robotic multidimensional directed evolution approach applied to fluorescent voltage reporters. Piatkevich KD, Jung EE, Straub C, Linghu C, Park D, Suk HJ, Hochbaum DR, Goodwin D, Pnevmatikakis E, Pak N, Kawashima T, Yang CT, Rhoades JL, Shemesh O, Asano S, Yoon YG, Freifeld L, Saulnier JL, Riegler C, Engert F, Hughes T, Drobizhev M, Szabo B, Ahrens MB, Flavell SW, Sabatini BL, Boyden ES. Nat Chem Biol. 2018 Feb 26. pii: 10.1038/s41589-018-0004-9. doi: 10.1038/s41589-018-0004-9. 10.1038/s41589-018-0004-9 PubMed 29483642
