Addgene

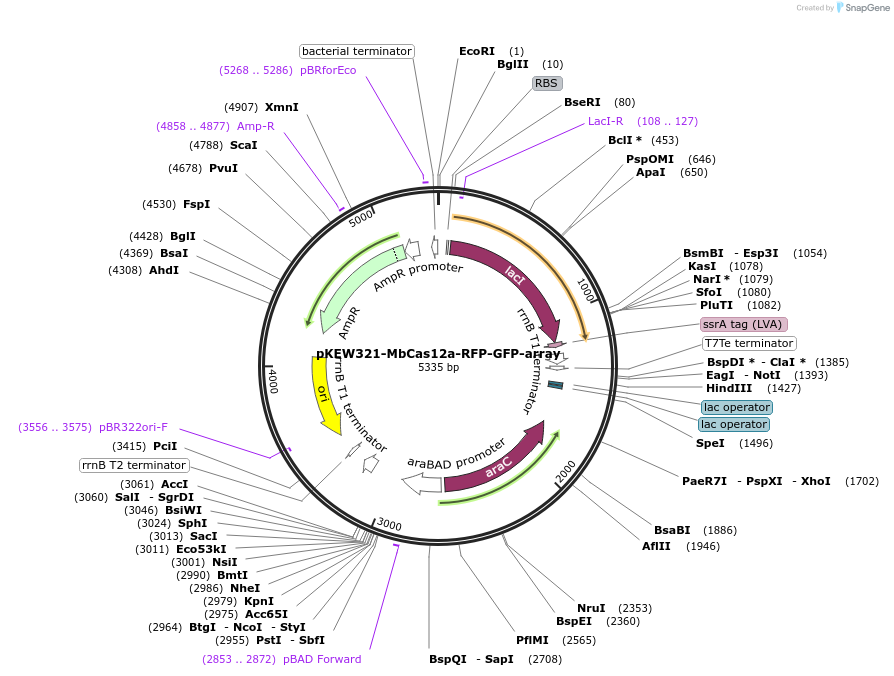

pKEW321-MbCas12a-RFP-GFP-array
(Plasmid #115661)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 115661 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    ColE1/AmpR
  • Backbone size w/o insert (bp) 5000
  • Total vector size (bp) 5335
  • Vector type
    Bacterial Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GFP and RFP array for MbCas12
  • gRNA/shRNA sequence
    RFP & GFP
  • Promoter Plac

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pKEW321-MbCas12a-RFP-GFP-array was a gift from Jennifer Doudna (Addgene plasmid # 115661 ; http://n2t.net/addgene:115661 ; RRID:Addgene_115661)

  • For your References section:

    Systematic discovery of natural CRISPR-Cas12a inhibitors. Watters KE, Fellmann C, Bai HB, Ren SM, Doudna JA. Science. 2018 Oct 12;362(6411):236-239. doi: 10.1126/science.aau5138. Epub 2018 Sep 6. 10.1126/science.aau5138 PubMed 30190307
