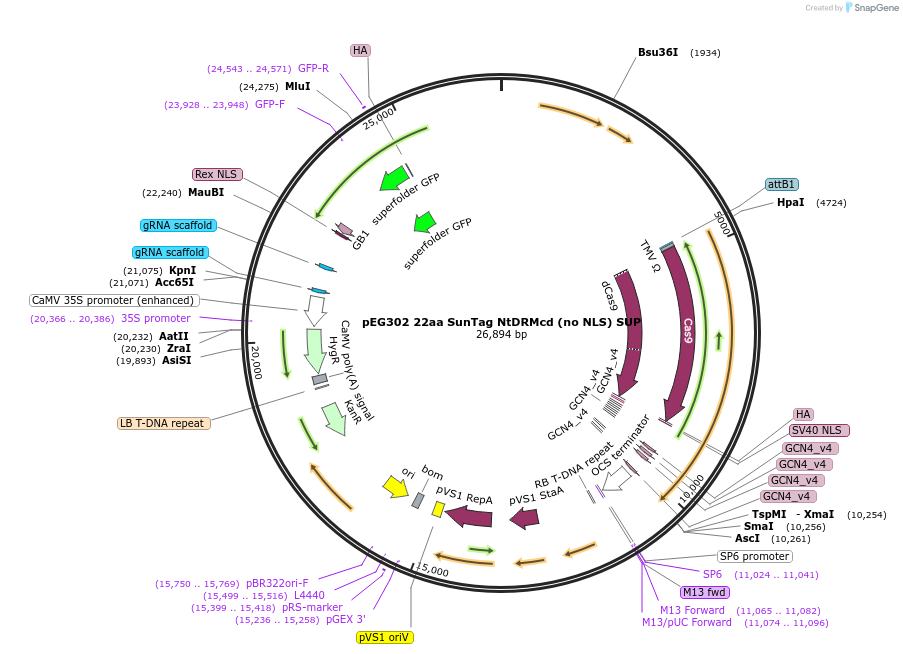

pEG302 22aa SunTag NtDRMcd (no NLS) SUP
(Plasmid #115490)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 115490 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEG302
  • Vector type
    Plant Expression, CRISPR, Synthetic Biology
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    g2_U6_g1_U6_NOS_NLS_GB1_noNLS_linker_DRMcd_linker_sfGFP_scFv_UBQ10_Insulator_UBQ10_Ω_dCas9_1xHA_3xNLS_linker_10xGCN4_OCS
  • Alt name
    22aa SunTag NtDRMcd (no NLS) SUP
  • Insert Size (bp)
    16843

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEG302 22aa SunTag NtDRMcd (no NLS) SUP was a gift from Steven Jacobsen (Addgene plasmid # 115490 ; http://n2t.net/addgene:115490 ; RRID:Addgene_115490)

  • For your References section:

    Site-specific manipulation of Arabidopsis loci using CRISPR-Cas9 SunTag systems. Papikian A, Liu W, Gallego-Bartolome J, Jacobsen SE. Nat Commun. 2019 Feb 13;10(1):729. doi: 10.1038/s41467-019-08736-7. 10.1038/s41467-019-08736-7 PubMed 30760722
