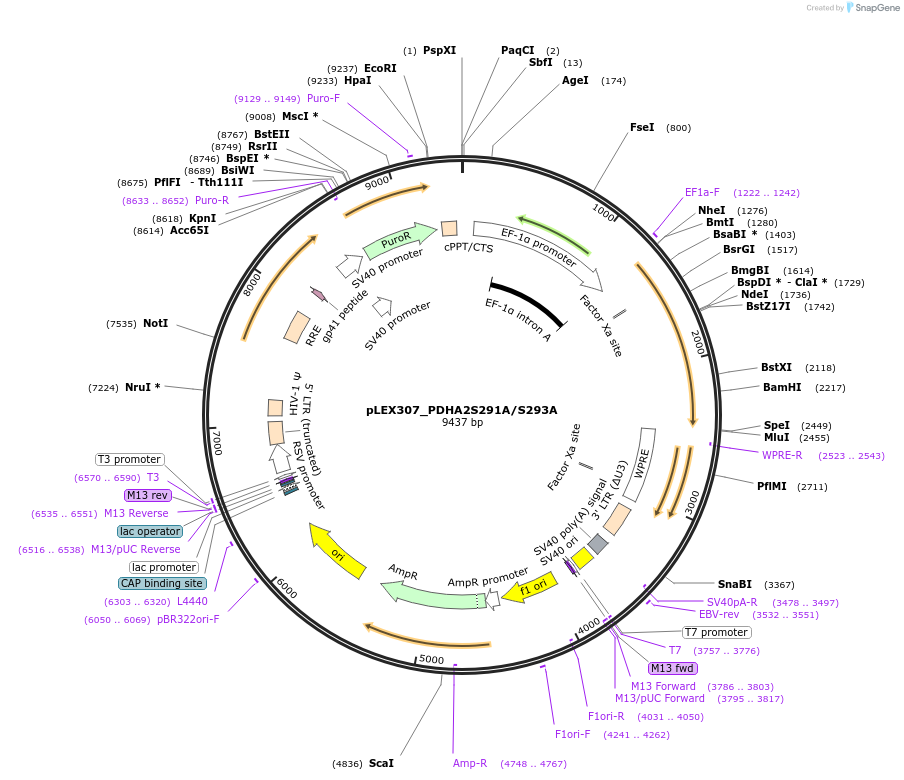

pLEX307_PDHA2S291A/S293A
(Plasmid #115198)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 115198 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLEX-307
  • Backbone manufacturer
    David Root, Addgene plasmid # 41392
  • Backbone size w/o insert (bp) 8270
  • Vector type
    Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PDHA2S291A/S293A
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1167
  • Mutation
    p.S291A/S293A
  • Entrez Gene
    PDHA2 (a.k.a. PDHAL, MGC149517, MGC149518)
  • Promoter EF1alpha

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site SpeI (not destroyed)
  • 5′ sequencing primer EF1alpha_F
  • 3′ sequencing primer WPRE_R
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLEX307_PDHA2S291A/S293A was a gift from Mohan Babu (Addgene plasmid # 115198 ; http://n2t.net/addgene:115198 ; RRID:Addgene_115198)

  • For your References section:

    Rewiring of the Human Mitochondrial Interactome during Neuronal Reprogramming Reveals Regulators of the Respirasome and Neurogenesis. Moutaoufik MT, Malty R, Amin S, Zhang Q, Phanse S, Gagarinova A, Zilocchi M, Hoell L, Minic Z, Gagarinova M, Aoki H, Stockwell J, Jessulat M, Goebels F, Broderick K, Scott NE, Vlasblom J, Musso G, Prasad B, Lamantea E, Garavaglia B, Rajput A, Murayama K, Okazaki Y, Foster LJ, Bader GD, Cayabyab FS, Babu M. iScience. 2019 Sep 4;19:1114-1132. doi: 10.1016/j.isci.2019.08.057. 10.1016/j.isci.2019.08.057 PubMed 31536960
