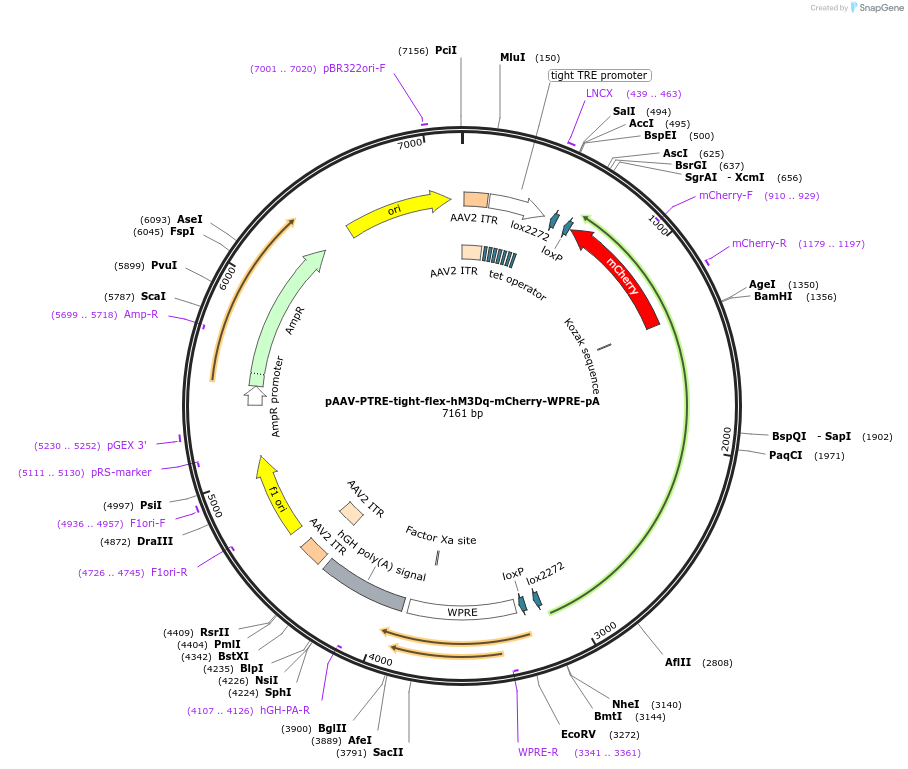

pAAV-PTRE-tight-flex-hM3Dq-mCherry-WPRE-pA
(Plasmid
#115161)
-
PurposeThis plasmid is for use with neuronal cell-type selective activity tagging. The hM3Dq receptor expression requires both neural activity and Cre recombinase.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 115161 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepUC
- Backbone size w/o insert (bp) 3600
- Total vector size (bp) 7161
-
Vector typeMammalian Expression, AAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert 1
-
Gene/Insert namePTRE - tet activator responsive promoter
-
SpeciesSynthetic
Gene/Insert 2
-
Gene/Insert nameflex sequence
-
SpeciesSynthetic
Gene/Insert 3
-
Gene/Insert namehM3dq-mCherry (inverted)
-
Tag
/ Fusion Protein
- hM3Dq-mCherry
Gene/Insert 4
-
Gene/Insert nameflex sequence
Resource Information
-
A portion of this plasmid was derived from a plasmid made byThe hM3dq-mCherry fragment was a gift from Bryan L. Roth, Addgene plasmid #44361.
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-PTRE-tight-flex-hM3Dq-mCherry-WPRE-pA was a gift from William Wisden (Addgene plasmid # 115161 ; http://n2t.net/addgene:115161 ; RRID:Addgene_115161) -
For your References section:
A Neuronal Hub Binding Sleep Initiation and Body Cooling in Response to a Warm External Stimulus. Harding EC, Yu X, Miao A, Andrews N, Ma Y, Ye Z, Lignos L, Miracca G, Ba W, Yustos R, Vyssotski AL, Wisden W, Franks NP. Curr Biol. 2018 Jul 23;28(14):2263-2273.e4. doi: 10.1016/j.cub.2018.05.054. Epub 2018 Jul 12. 10.1016/j.cub.2018.05.054 PubMed 30017485
