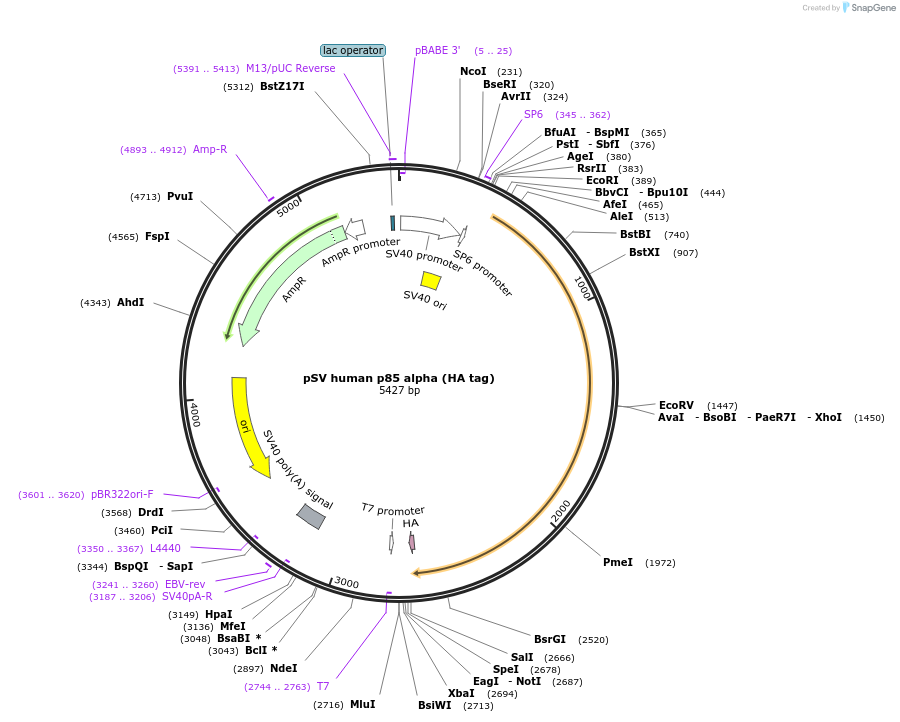

pSV human p85 alpha (HA tag)
(Plasmid #11499)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 11499 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSV Sport
  • Backbone size w/o insert (bp) 3160
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    p85 alpha
  • Alt name
    PI3K regulatory subunit p85alpha
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2200
  • Entrez Gene
    PIK3R1 (a.k.a. AGM7, GRB1, IMD36, p85, p85-ALPHA, p85alpha)
  • Tag / Fusion Protein
    • HA (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site SalI (unknown if destroyed)
  • 5′ sequencing primer SP6
  • 3′ sequencing primer T7
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

There is a short insert of aa (ENFLSCLPS) in the middle of the ORF compared to NCBI.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSV human p85 alpha (HA tag) was a gift from Ronald Kahn (Addgene plasmid # 11499 ; http://n2t.net/addgene:11499 ; RRID:Addgene_11499)

  • For your References section:

    Positive and negative roles of p85 alpha and p85 beta regulatory subunits of phosphoinositide 3-kinase in insulin signaling. Ueki K, Fruman DA, Yballe CM, Fasshauer M, Klein J, Asano T, Cantley LC, Kahn CR. J Biol Chem. 2003 Nov 28. 278(48):48453-66. 10.1074/jbc.M305602200 PubMed 14504291
