mOtop3_pGEMHE
(Plasmid
#114676)
-
PurposeThis construct was used to express mouse Otop3 in Xenopus laevis oocytes
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 114676 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

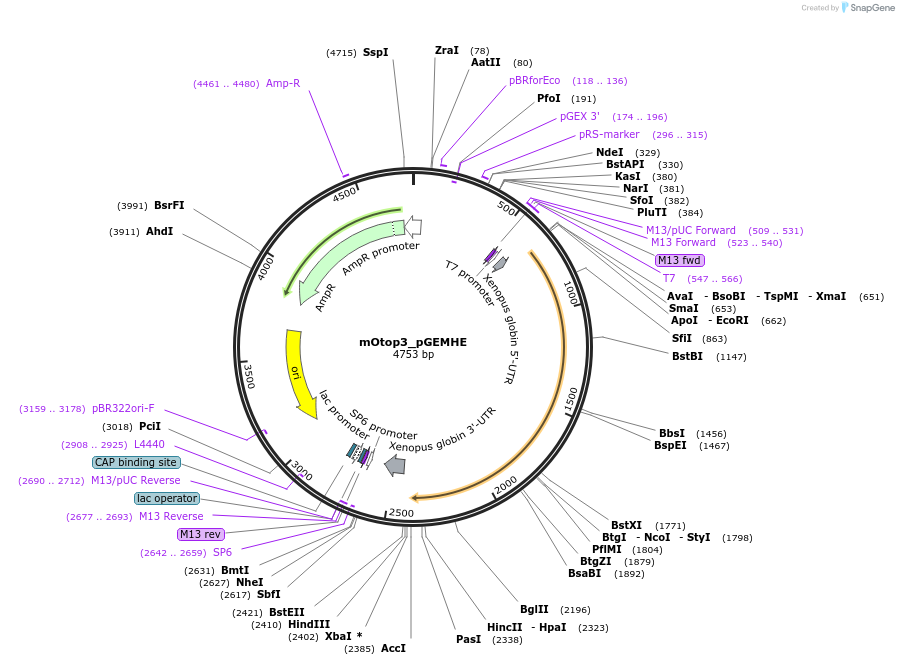

Backbone
-
Vector backbonepGEMHE
- Backbone size w/o insert (bp) 3019
- Total vector size (bp) 4753
-
Vector typeFor generating the mRNA, which can highly express in Xenopus laevis oocytes
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameOtopetrin 3
-
Alt nameOtop3
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)1734
-
GenBank IDNM_001347647
-
Entrez GeneOtop3 (a.k.a. 2310011E08Rik)
- Promoter T7
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer taatacgactcactataggg
- 3′ sequencing primer TTAGGAGCAGATACGAATGGCTAC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
mOtop3_pGEMHE was a gift from Emily Liman (Addgene plasmid # 114676 ; http://n2t.net/addgene:114676 ; RRID:Addgene_114676) -
For your References section:
An evolutionarily conserved gene family encodes proton-selective ion channels. Tu YH, Cooper AJ, Teng B, Chang RB, Artiga DJ, Turner HN, Mulhall EM, Ye W, Smith AD, Liman ER. Science. 2018 Mar 2;359(6379):1047-1050. doi: 10.1126/science.aao3264. Epub 2018 Jan 25. 10.1126/science.aao3264 PubMed 29371428
