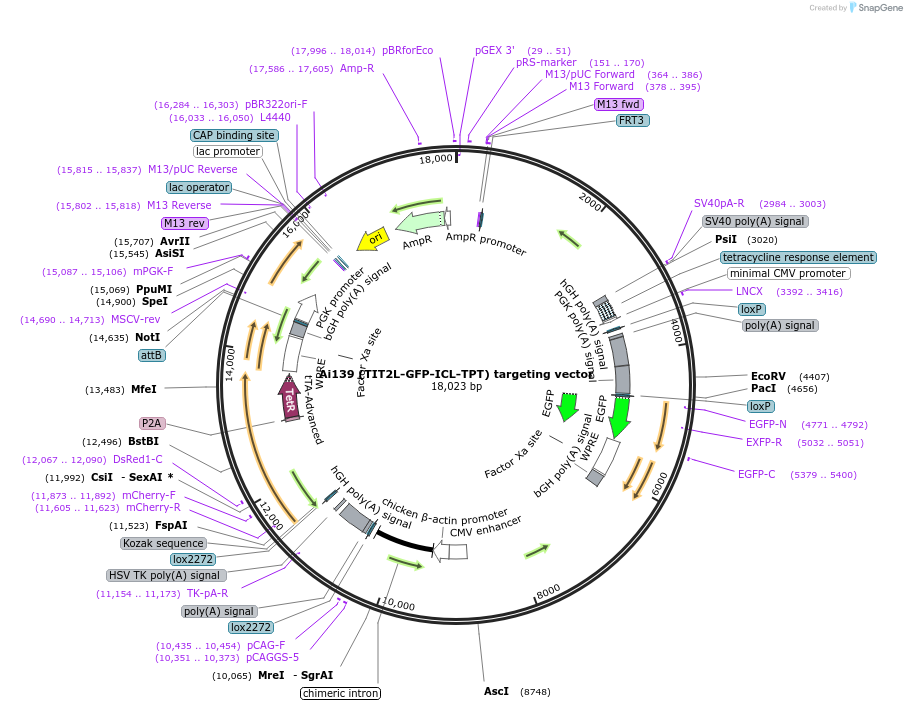

Ai139 (TIT2L-GFP-ICL-TPT) targeting vector
(Plasmid #114426)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 114426 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    TIGRE2.0 targeting vector
  • Backbone size w/o insert (bp) 15127
  • Total vector size (bp) 18023
  • Vector type
    Mouse Targeting, Cre/Lox
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    GFP, tdTomato, tTA2,
  • Alt name
    EGFP
  • Alt name
    tdTomato
  • Alt name
    tTA2
  • Promoter TRE2, CAG

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Mlul (not destroyed)
  • 3′ cloning site Mlul (not destroyed)
  • 5′ sequencing primer CTAATTCCATCAGAAAGCTT
  • 3′ sequencing primer GCGTTTCTTCCTTTTCCCCAC
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Roger Tsien and Clontech
  • Article Citing this Plasmid

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Ai139 (TIT2L-GFP-ICL-TPT) targeting vector was a gift from Hongkui Zeng (Addgene plasmid # 114426 ; http://n2t.net/addgene:114426 ; RRID:Addgene_114426)

  • For your References section:

    A Suite of Transgenic Driver and Reporter Mouse Lines with Enhanced Brain-Cell-Type Targeting and Functionality. Daigle TL, Madisen L, Hage TA, Valley MT, Knoblich U, Larsen RS, Takeno MM, Huang L, Gu H, Larsen R, Mills M, Bosma-Moody A, Siverts LA, Walker M, Graybuck LT, Yao Z, Fong O, Nguyen TN, Garren E, Lenz GH, Chavarha M, Pendergraft J, Harrington J, Hirokawa KE, Harris JA, Nicovich PR, McGraw MJ, Ollerenshaw DR, Smith KA, Baker CA, Ting JT, Sunkin SM, Lecoq J, Lin MZ, Boyden ES, Murphy GJ, da Costa NM, Waters J, Li L, Tasic B, Zeng H. Cell. 2018 Jul 12;174(2):465-480.e22. doi: 10.1016/j.cell.2018.06.035. 10.1016/j.cell.2018.06.035 PubMed 30007418
