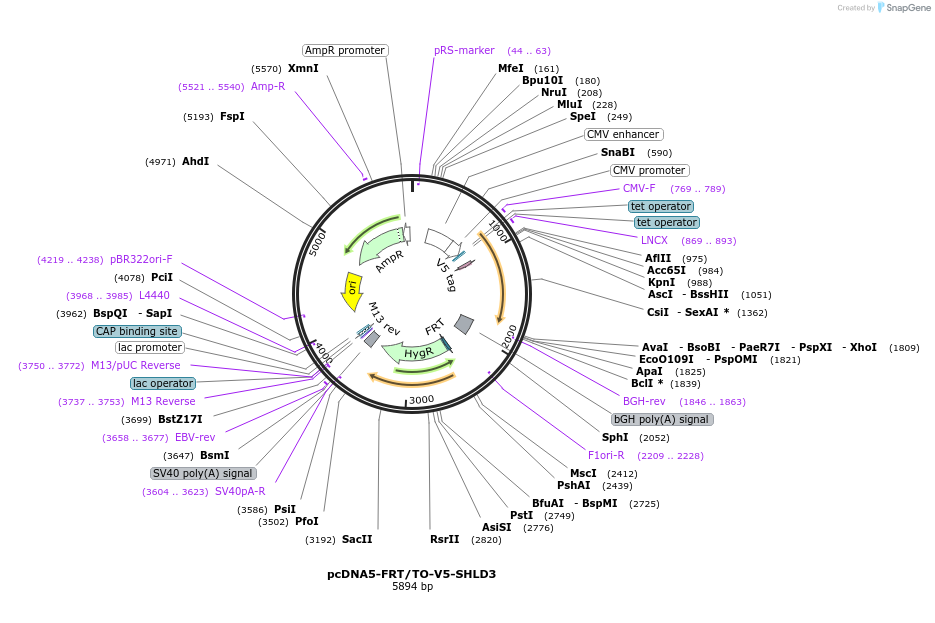

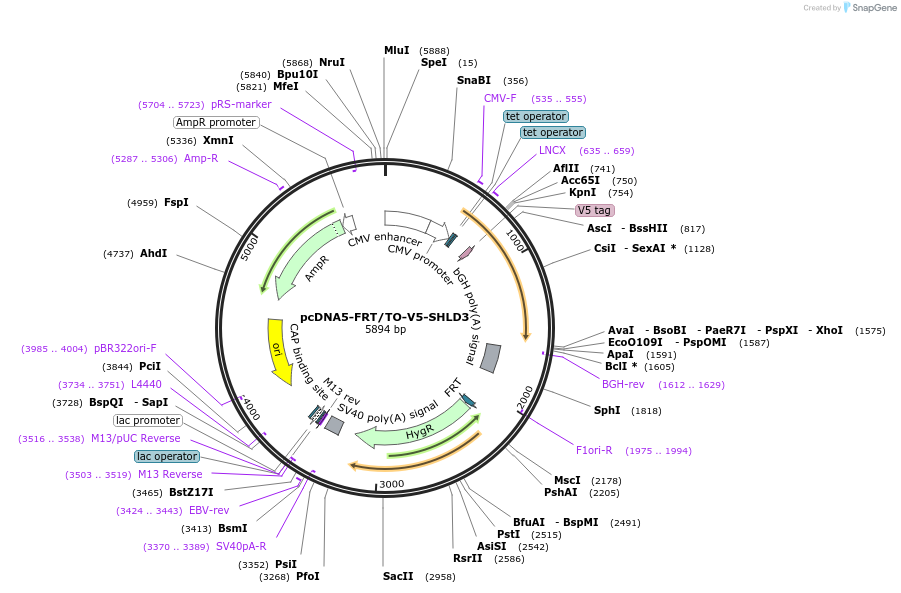

pcDNA5-FRT/TO-V5-SHLD3
(Plasmid #114124)

Print

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 114124 Standard format: Plasmid sent in bacteria as agar stab 1 $85 *
Add to Cart

* Log in to view industry pricing.

Backbone

  • Vector backbone
    pcDNA5-FRT/TO-V5-MCS
  • Backbone size w/o insert (bp) 5147
  • Total vector size (bp) 5894
  • Vector type
    Mammalian Expression ; Genomic integration, tetracycline inducible
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SHLD3
  • Alt name
    CTC543A2.2
  • Alt name
    RINN1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    747
  • Entrez Gene
    SHLD3 (a.k.a. CTC-534A2.2, RINN1)
  • Promoter CMV/TetO2
  • Tag / Fusion Protein
    • V5 (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AscI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer CMV Forward
  • 3′ sequencing primer BGH Reverse
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA5-FRT/TO-V5-SHLD3 was a gift from Daniel Durocher (Addgene plasmid # 114124 ; http://n2t.net/addgene:114124 ; RRID:Addgene_114124)

  • For your References section:

    The shieldin complex mediates 53BP1-dependent DNA repair. Noordermeer SM, Adam S, Setiaputra D, Barazas M, Pettitt SJ, Ling AK, Olivieri M, Alvarez-Quilon A, Moatti N, Zimmermann M, Annunziato S, Krastev DB, Song F, Brandsma I, Frankum J, Brough R, Sherker A, Landry S, Szilard RK, Munro MM, McEwan A, Goullet de Rugy T, Lin ZY, Hart T, Moffat J, Gingras AC, Martin A, van Attikum H, Jonkers J, Lord CJ, Rottenberg S, Durocher D. Nature. 2018 Aug;560(7716):117-121. doi: 10.1038/s41586-018-0340-7. Epub 2018 Jul 18. 10.1038/s41586-018-0340-7 PubMed 30022168
