PB-iRFP-STOP-ReNL
(Plasmid
#113965)
-
PurposePiggybac transposon plasmid CRISPR gene deletion activatable fluorescence. Constitutive iRFP670 under EF1A promoter, CMV promoter with two SV40 polyA followed by red-enhanced nanolantern (ReNL)
-
Depositing Lab
-

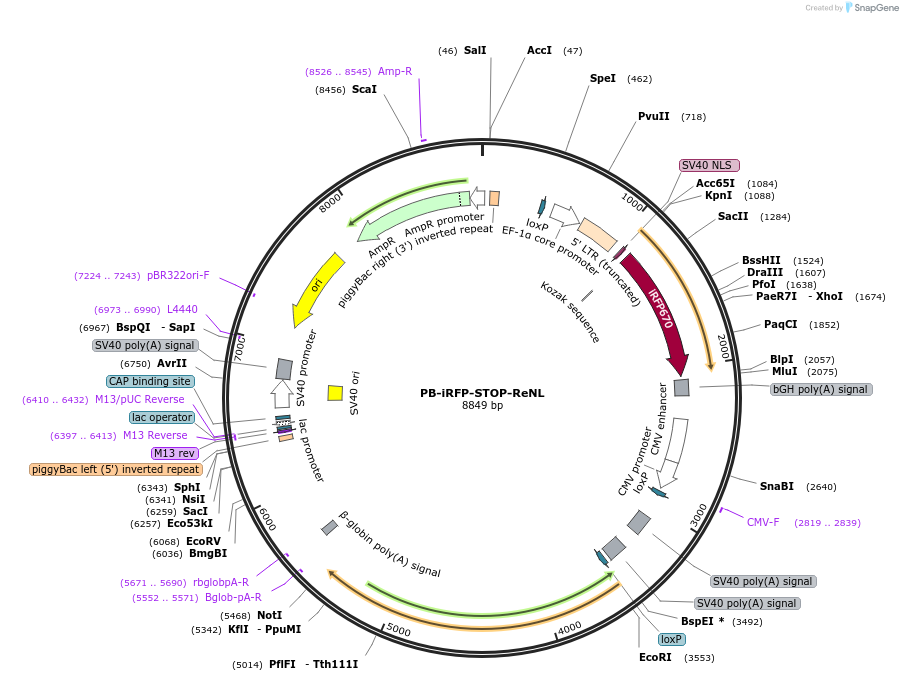

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 113965 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepBR322
-
Modifications to backbonePiggybac inserts
-
Vector typeMammalian Expression ; Piggybac transposon
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert 1
-
Gene/Insert nameiRFP670
-
SpeciesH. sapiens (human), M. musculus (mouse), Synthetic
-
Insert Size (bp)950
-
GenBank IDKC991142
- Promoter EF1A
Cloning Information for Gene/Insert 1
- Cloning method Gibson Cloning
- 5′ sequencing primer CCTTCCTTGACCCTGGAAGG
- 3′ sequencing primer ATTAAGGGATCTGTAGGGCG (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert nameReNL
-
Alt nameRed enhanced nanolantern
-
SpeciesH. sapiens (human), M. musculus (mouse), Synthetic
-
Insert Size (bp)1908
-
GenBank IDLC128718
- Promoter CMV - SV40-PolyA - SV40-PolyA
Cloning Information for Gene/Insert 2
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer AATTCATGGTGAGCAAGGGC
- 3′ sequencing primer CCTGTGTGAAATTGTTATCCGCT (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made bypNLS-iRFP670 was a gift from Vladislav Verkhusha (Addgene plasmid # 45466) ReNL/pcDNA3 was a gift from Takeharu Nagai (Addgene plasmid # 85203)
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Piggybac transposon plasmid for stable expression of iRFP670 (far red fluorescent protein) for FACS sorting with CRISPR/Cas9 mediated fluorescence/luminescence reporter of ReNL following elimination of SV40 polyA sequences by gene editing deletion.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
PB-iRFP-STOP-ReNL was a gift from Jordan Green (Addgene plasmid # 113965 ; http://n2t.net/addgene:113965 ; RRID:Addgene_113965) -
For your References section:
Carboxylated branched poly(beta-amino ester) nanoparticles enable robust cytosolic protein delivery and CRISPR-Cas9 gene editing. Rui Y, Wilson DR, Choi J, Varanasi M, Sanders K, Karlsson J, Lim M, Green JJ. Sci Adv. 2019 Dec 6;5(12):eaay3255. doi: 10.1126/sciadv.aay3255. eCollection 2019 Dec. 10.1126/sciadv.aay3255 PubMed 31840076
