pLenti6.2_mNeonGreen2
(Plasmid #113727)

• Purpose: Expresses the fluorescent protein mNeonGreen2 in a lentiviral backbone
• Depositing Lab: Vanessa LaPointe
• Publication: Wieland et al Front Bioeng Biotechnol. 2021 Sep 9;9:729057. doi: 10.3389/fbioe.2021.729057. eCollection 2021.

Backbone

• Vector backbone: pLenti6.2
• Backbone size w/o insert (bp): 7897
• Total vector size (bp): 8581
• Vector type: Mammalian Expression, Lentiviral
• Selectable markers: Puromycin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: mNeonGreen2
• Alt name: mNG2
• Species: Synthetic
• Insert Size (bp): 684
• Promoter: CMV

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: XbaI (not destroyed)
• 3′ cloning site: SalI (not destroyed)
• 5′ sequencing primer: CGCAAATGGGCGGTAGGCGTG
• 3′ sequencing primer: CATAGCGTAAAAGGAGCAACA

Resource Information

• Supplemental Documents:

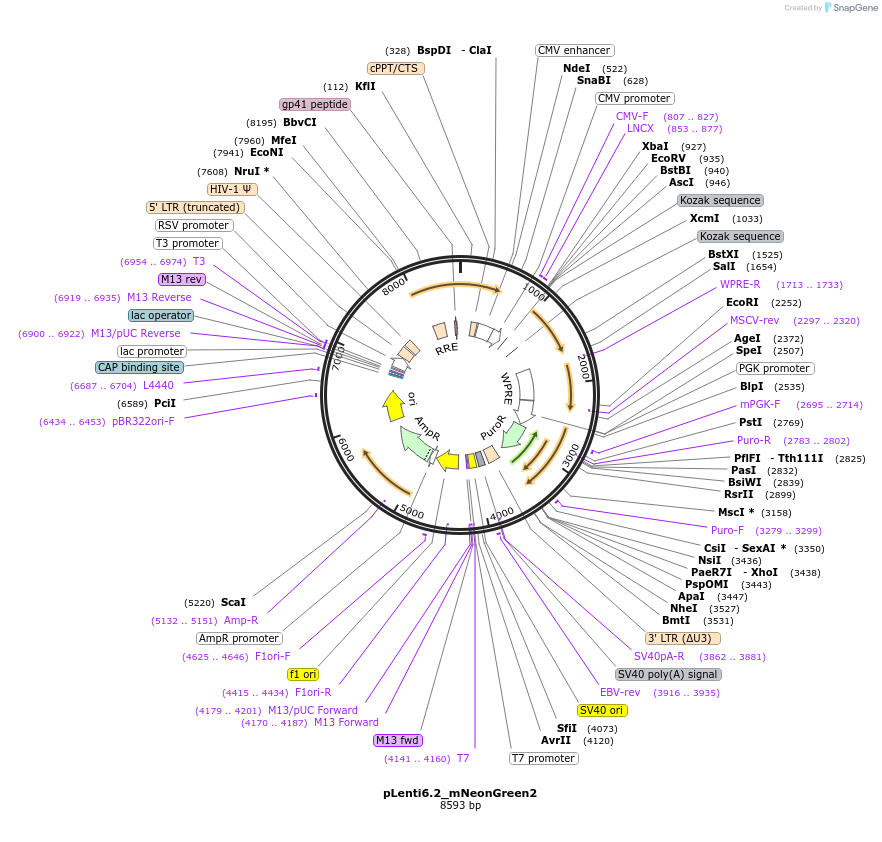

  • pLenti6.2_mNeonGreen2.gb
• A portion of this plasmid was derived from a plasmid made by: The pLenti6.2 backbone was isolated from vector #17448 bought from Addgene. In addition a small multiple cloning site was inserted that can be used to create fusion proteins.
• Articles Citing this Plasmid:
  • 2 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • mNeonGreen Label License
• Industry Terms:
  • Not Available to Industry
