PurposeReporter for Alt-EJ, variant of EJ7-GFP. Double strand breaks are induced with the 7a & 7h, or 7a & 7i sgRNAs, with CAS9. EJ using 4 nt of microhomology causes a deletion mutation and restores GFP
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 113619 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

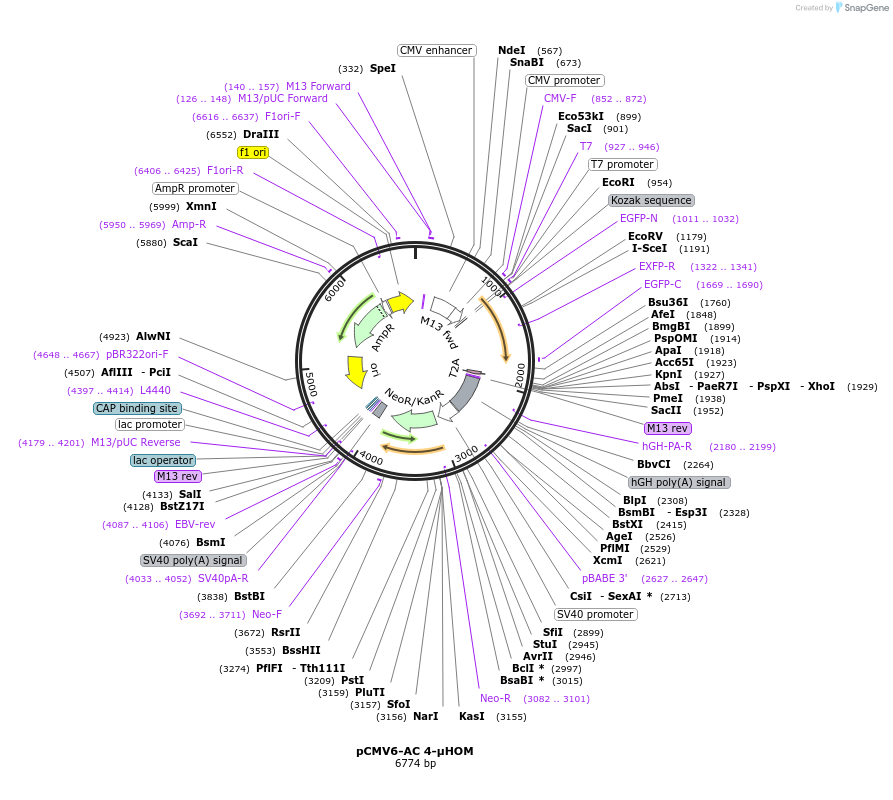

Backbone
-
Vector backbonepCMV6-AC
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert name4-μHOM variant of EGFP
-
SpeciesSynthetic
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCMV6-AC 4-μHOM was a gift from Jeremy Stark (Addgene plasmid # 113619 ; http://n2t.net/addgene:113619 ; RRID:Addgene_113619) -
For your References section:
C-NHEJ without indels is robust and requires synergistic function of distinct XLF domains. Bhargava R, Sandhu M, Muk S, Lee G, Vaidehi N, Stark JM. Nat Commun. 2018 Jun 27;9(1):2484. doi: 10.1038/s41467-018-04867-5. 10.1038/s41467-018-04867-5 [pii] PubMed 29950655
