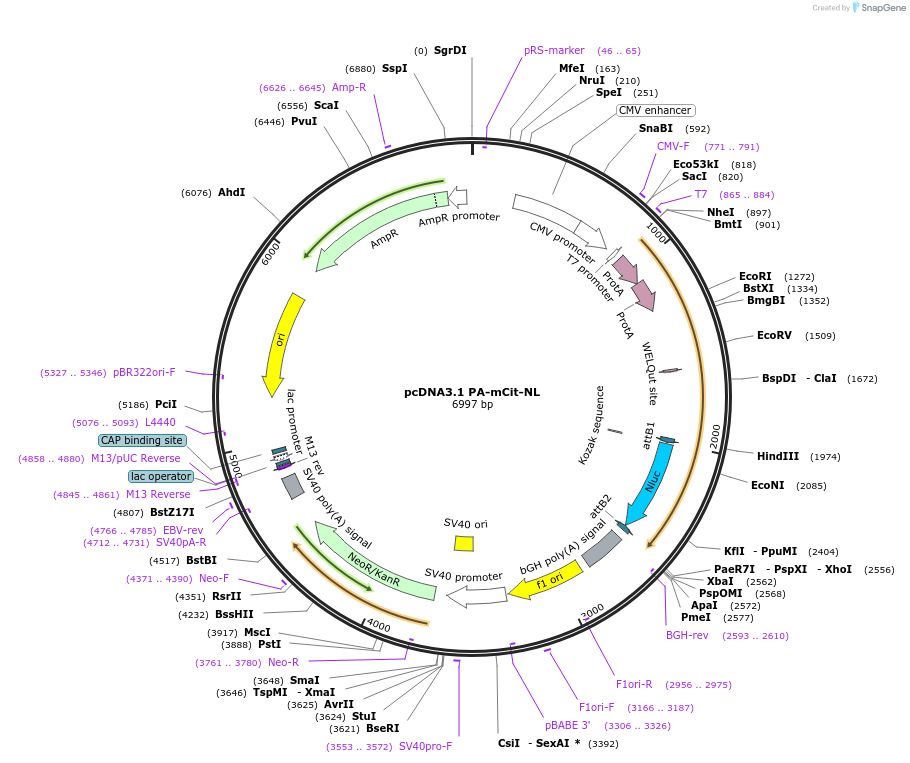

pcDNA3.1 PA-mCit-NL
(Plasmid #113444)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 113444 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone size w/o insert (bp) 5428
  • Total vector size (bp) 6492
  • Vector type
    Mammalian Expression, Luciferase
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ProteinA-mCitrine-NanoLuc
  • Insert Size (bp)
    1620
  • Promoter CMV

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ sequencing primer GCAAATGGGCGGTAGGCGT
  • 3′ sequencing primer TAGAAGGCACAGTCGAGGCT
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.1 PA-mCit-NL was a gift from Erich Wanker (Addgene plasmid # 113444 ; http://n2t.net/addgene:113444 ; RRID:Addgene_113444)

  • For your References section:

    LuTHy: a double-readout bioluminescence-based two-hybrid technology for quantitative mapping of protein-protein interactions in mammalian cells. Trepte P, Kruse S, Kostova S, Hoffmann S, Buntru A, Tempelmeier A, Secker C, Diez L, Schulz A, Klockmeier K, Zenkner M, Golusik S, Rau K, Schnoegl S, Garner CC, Wanker EE. Mol Syst Biol. 2018 Jul 11;14(7):e8071. doi: 10.15252/msb.20178071. 10.15252/msb.20178071 PubMed 29997244
