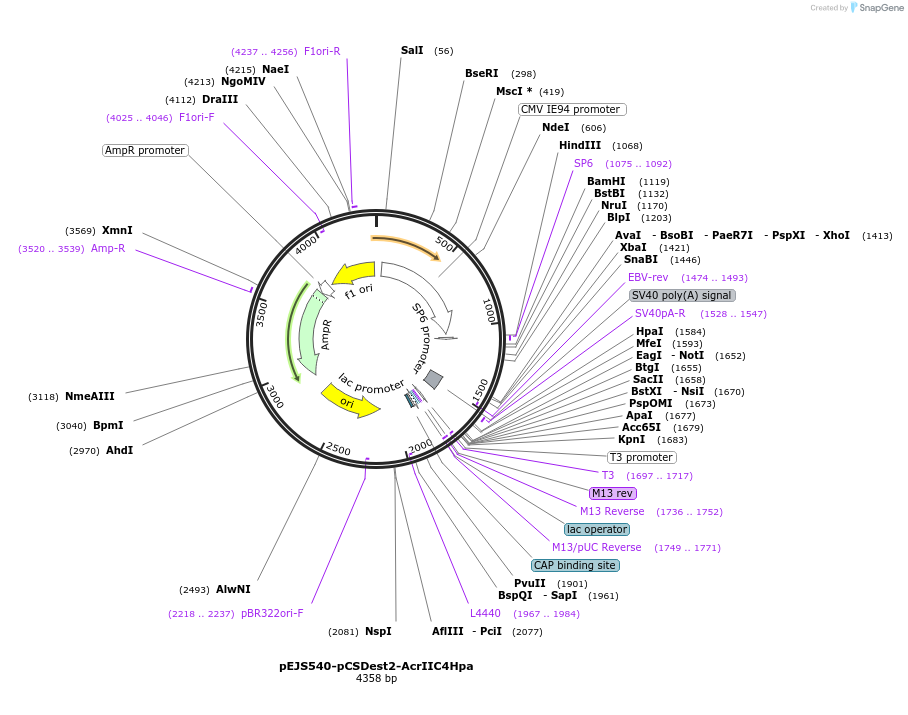

pEJS540-pCSDest2-AcrIIC4Hpa
(Plasmid #113434)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 113434 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCSDest2
  • Backbone size w/o insert (bp) 4094
  • Total vector size (bp) 4361
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Type II-C anti-CRISPR
  • Species
    Haemophilus parainfluenzae
  • Insert Size (bp)
    267
  • Promoter CMV

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer ATTTAGGTGACACTATAGA
  • 3′ sequencing primer TAATACGACTCACTATAG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEJS540-pCSDest2-AcrIIC4Hpa was a gift from Erik Sontheimer (Addgene plasmid # 113434 ; http://n2t.net/addgene:113434 ; RRID:Addgene_113434)

  • For your References section:

    Potent Cas9 Inhibition in Bacterial and Human Cells by AcrIIC4 and AcrIIC5 Anti-CRISPR Proteins. Lee J, Mir A, Edraki A, Garcia B, Amrani N, Lou HE, Gainetdinov I, Pawluk A, Ibraheim R, Gao XD, Liu P, Davidson AR, Maxwell KL, Sontheimer EJ. MBio. 2018 Dec 4;9(6). pii: mBio.02321-18. doi: 10.1128/mBio.02321-18. 10.1128/mBio.02321-18 PubMed 30514786
