PurposeExpresses FRB-PafA in bacteria
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 113404 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-

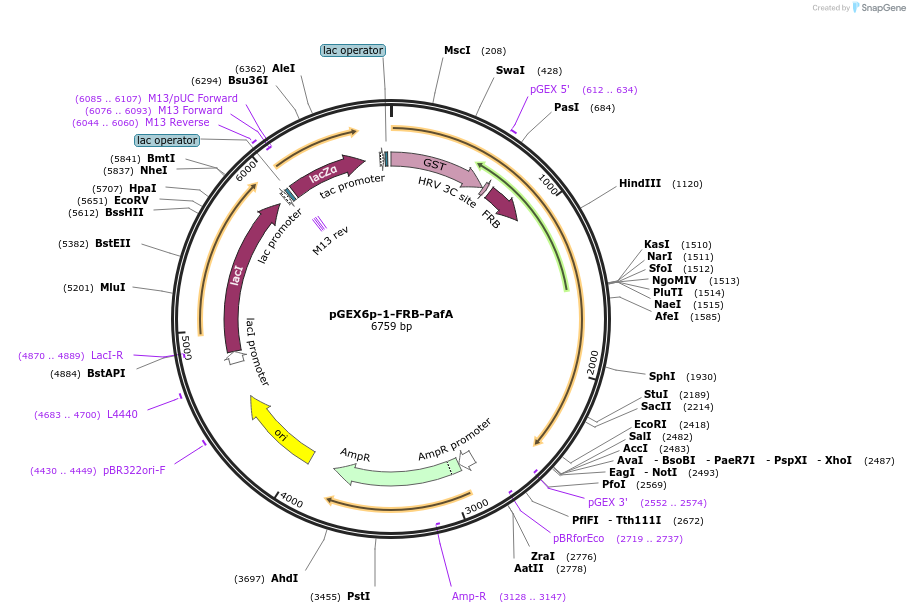

Vector backbonepGEX6P-1
-
Modifications to backbonePafA gene is fused to the C terminal of FRB
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameFRB-PafA
-
Speciesunknown
-
Insert Size (bp)1785
- Promoter tac
-
Tag
/ Fusion Protein
- GST (N terminal on backbone)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer self-designed (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pGEX6p-1-FRB-PafA was a gift from Min Zhuang (Addgene plasmid # 113404 ; http://n2t.net/addgene:113404 ; RRID:Addgene_113404) -
For your References section:
A proximity-tagging system to identify membrane protein-protein interactions. Liu Q, Zheng J, Sun W, Huo Y, Zhang L, Hao P, Wang H, Zhuang M. Nat Methods. 2018 Aug 13. pii: 10.1038/s41592-018-0100-5. doi: 10.1038/s41592-018-0100-5. 10.1038/s41592-018-0100-5 PubMed 30104635
