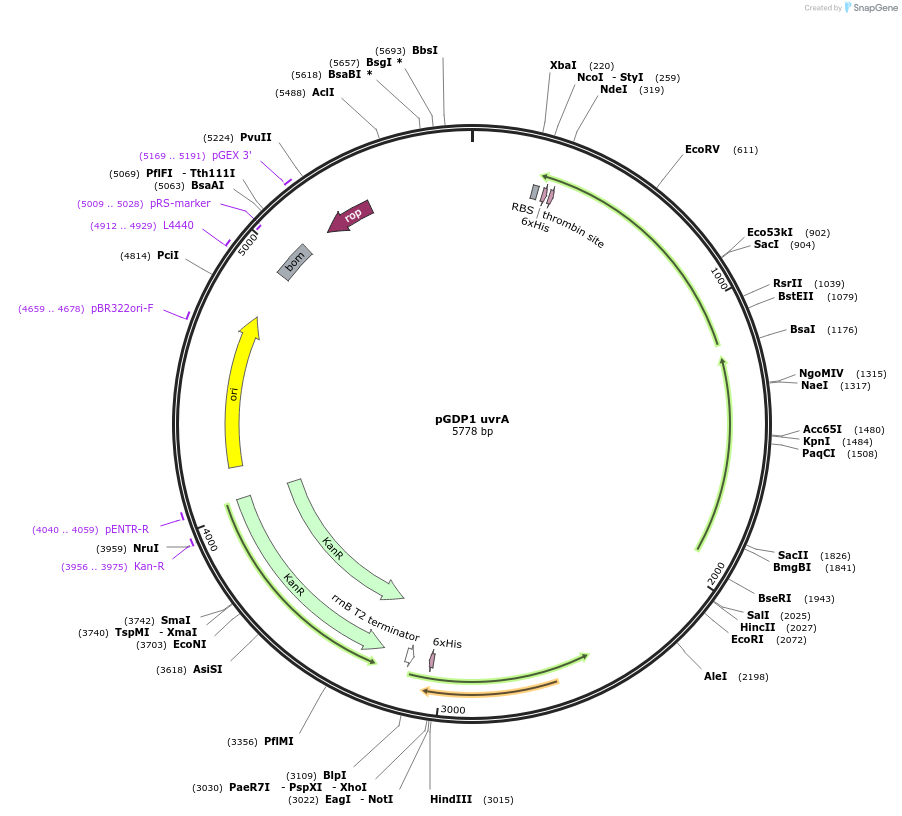

pGDP1 uvrA
(Plasmid #112892)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 112892 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pBR322
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    uvrA-like protein
  • Insert Size (bp)
    2696
  • Promoter Pbla
  • Tag / Fusion Protein
    • 6xHis (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer CATGAGACAATAACCCTG
  • 3′ sequencing primer CCAACTCAGCTTCCTTTC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

uvrA gene was taken from the Echinomycin biosynthetic gene cluster. JoVE antibiotic dereplication paper: Zubyk, H.L., Cox, G., Wright, G.D. Antibiotic Dereplication Using the Antibiotic Resistance Platform. J. Vis. Exp. (152), e60536, doi:10.3791/60536 (2019). (https://www.jove.com/video/60536/antibiotic-dereplication-using-the-antibiotic-resistance-platform)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGDP1 uvrA was a gift from Gerard Wright (Addgene plasmid # 112892 ; http://n2t.net/addgene:112892 ; RRID:Addgene_112892)

  • For your References section:

    A Common Platform for Antibiotic Dereplication and Adjuvant Discovery. Cox G, Sieron A, King AM, De Pascale G, Pawlowski AC, Koteva K, Wright GD. Cell Chem Biol. 2017 Jan 19;24(1):98-109. doi: 10.1016/j.chembiol.2016.11.011. Epub 2016 Dec 22. 10.1016/j.chembiol.2016.11.011 PubMed 28017602
