PurposeExpressing Shuttle-tdTomato, or NLS-NES-tagged tdTomato in a Lentiviral vector
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 112579 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

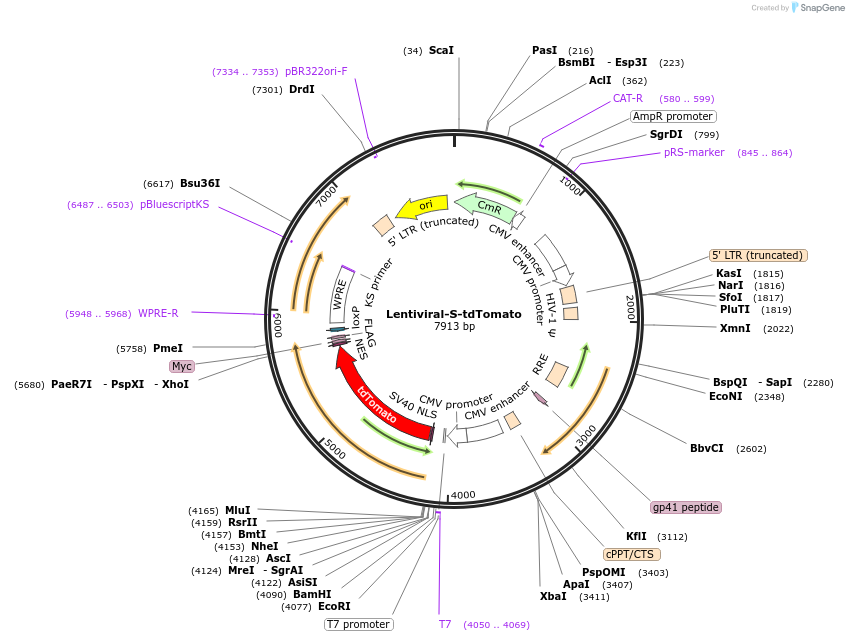

Backbone
-
Vector backbonepLenti-C-Myc-DDK
-
Backbone manufacturerOrigene
- Backbone size w/o insert (bp) 6400
- Total vector size (bp) 7800
-
Vector typeMammalian Expression, Lentiviral
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNLS-tdTomato-NES
-
Alt nameShuttle-tdTomato, S-tdTomato
-
SpeciesFluorescent protein tdTomato
-
Insert Size (bp)1300
-
Tags
/ Fusion Proteins
- nuclear localization sequence (N terminal on insert)
- nuclear export sequence (C terminal on insert)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byFrom Svetlana Vidensky, a technician in the Rothstein lab.
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Lentiviral-S-tdTomato was a gift from Jeffrey Rothstein (Addgene plasmid # 112579 ; http://n2t.net/addgene:112579 ; RRID:Addgene_112579) -
For your References section:
The C9orf72 repeat expansion disrupts nucleocytoplasmic transport. Zhang K, Donnelly CJ, Haeusler AR, Grima JC, Machamer JB, Steinwald P, Daley EL, Miller SJ, Cunningham KM, Vidensky S, Gupta S, Thomas MA, Hong I, Chiu SL, Huganir RL, Ostrow LW, Matunis MJ, Wang J, Sattler R, Lloyd TE, Rothstein JD. Nature. 2015 Sep 3;525(7567):56-61. doi: 10.1038/nature14973. Epub 2015 Aug 26. 10.1038/nature14973 PubMed 26308891
