pJB01
(Plasmid #111957)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 111957 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

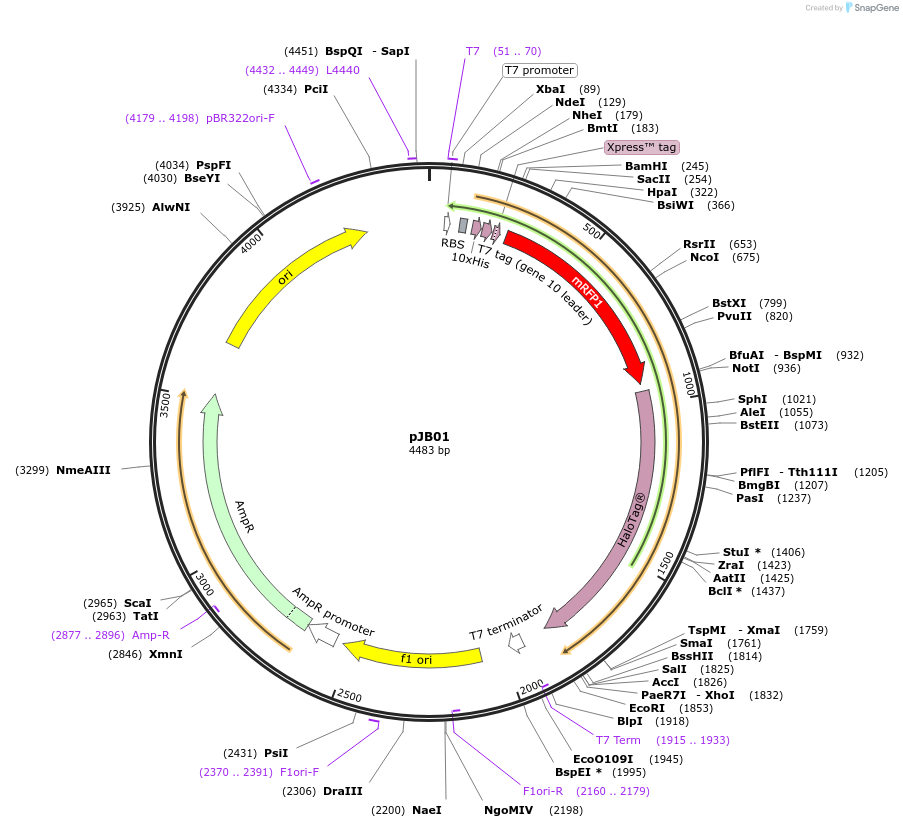

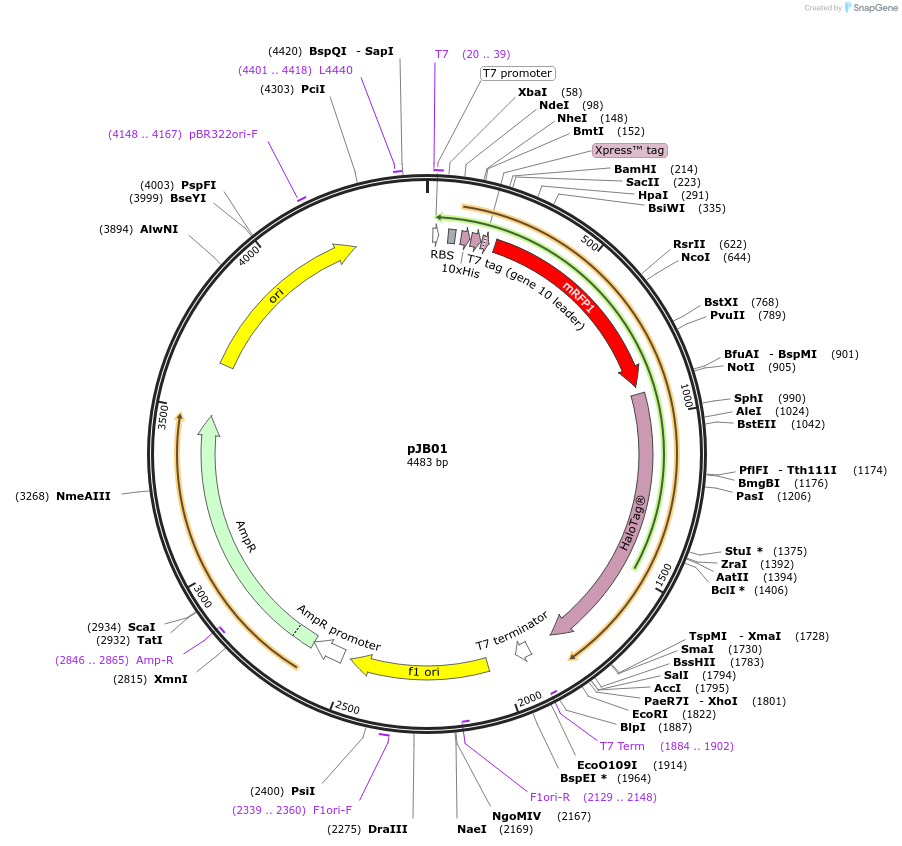

Backbone

  • Vector backbone
    prSET
  • Backbone manufacturer
    ThermoFisherScientific
  • Backbone size w/o insert (bp) 2900
  • Total vector size (bp) 4483
  • Modifications to backbone
    6XHis-tag was replaced with 10X-Histag at N terminal. mRFP1 was inserted between BamHI and EcoRI cut sites and additional restriction enzyme cut sites were added.
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    RFP
  • Alt name
    mRFP1
  • Insert Size (bp)
    1719
  • GenBank ID
    AF506027
  • Promoter T7
  • Tag / Fusion Protein
    • HaloTag (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NotI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer T7 Promoter
  • 3′ sequencing primer T7 Terminator
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJB01 was a gift from Matthew Good (Addgene plasmid # 111957 ; http://n2t.net/addgene:111957 ; RRID:Addgene_111957)

  • For your References section:

    Optochemical Control of Protein Localization and Activity within Cell-like Compartments. Caldwell RM, Bermudez JG, Thai D, Aonbangkhen C, Schuster BS, Courtney T, Deiters A, Hammer DA, Chenoweth DM, Good MC. Biochemistry. 2018 May 8;57(18):2590-2596. doi: 10.1021/acs.biochem.8b00131. Epub 2018 Apr 19. 10.1021/acs.biochem.8b00131 PubMed 29671583
